PROMAG | MEASUREMENT STAND

Promag

---------
---------

UV-A Lamp Verification Stand

Measurement Stand

Ensure accuracy and compliance in NDT inspections.
Perform regular, accurate UV-A and white light output measurements for your handheld lamps at the standard distance of 15 inches (38 cm) with the PROMAG Measurement Stand.

In recent years, the NDT industry has adopted rigorous new standards for LED UV-A lights, including ASTM E3022, Rolls-Royce RRES 90061, and Airbus AITM6-1001. These standards ensure that the UV-A lights used for inspections meet strict quality and property requirements. While PROMAG's UV-A lights are tested to comply with all relevant ASTM and ISO requirements, regular verification is essential.

The PROMAG Measurement Stand simplifies this process, removing setup variation so your readings stay consistent measurement after measurement.

View Standard Set Technical Data

0 cm

15 in reference distance

0 kg

Heavy-duty stability

0 tools

Tool-free assembly

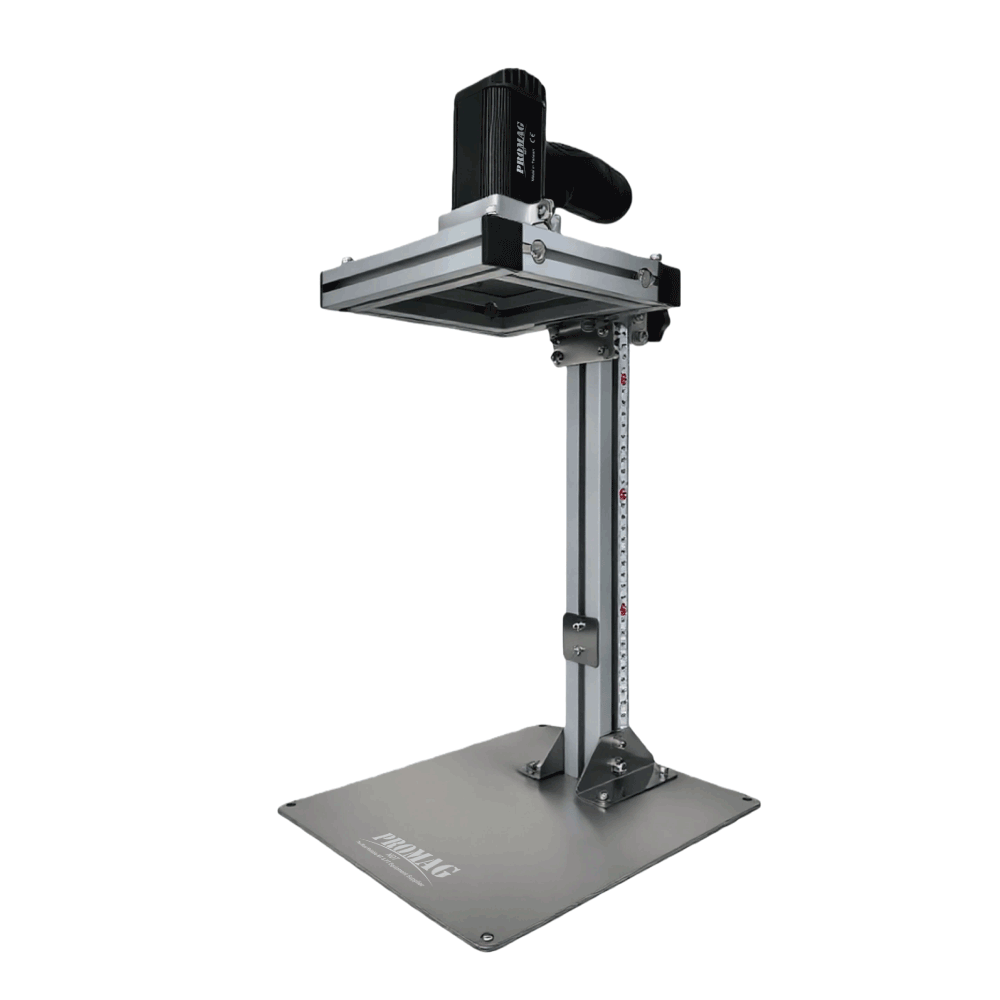

PROMAG Measurement Stand — full assembly

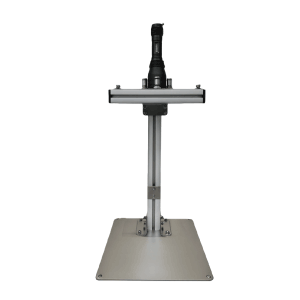

PROMAG Measurement Stand — lamp holder in use

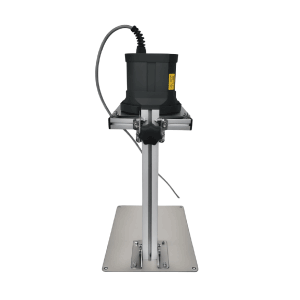

PROMAG Measurement Stand — measurement setup

Weather & Corrosion Resistant

Stainless steel built for shop-floor conditions

Precision Grading / Scaling

Repeatable height setting every time

Heavy-Duty Stability
(4.1 kg)

Weighted base stays put during measurement

Adjustable Height

Set the 38 cm reference distance precisely

Tool-Free Assembly

Ready at the bench, no fixtures required

Standard Set & Specifications

Standard Set

1

PROMAG Measurement Stand x1

Dimension: 11.8 × 9.84 × 18.1 in (30 × 25 × 46 cm) Weight: 4,100 g
(9.0 lb)

2

Lamp holder x1 (for VICTORY)

3

Lamp holder x1 (for PROUV)

Specifications

Type	Dimension (L×W×H)	Weight
Measurement Stand	11.8 × 9.84 × 18.1 in(30 × 25 × 46 cm)	4,100 g (9.0 lb)

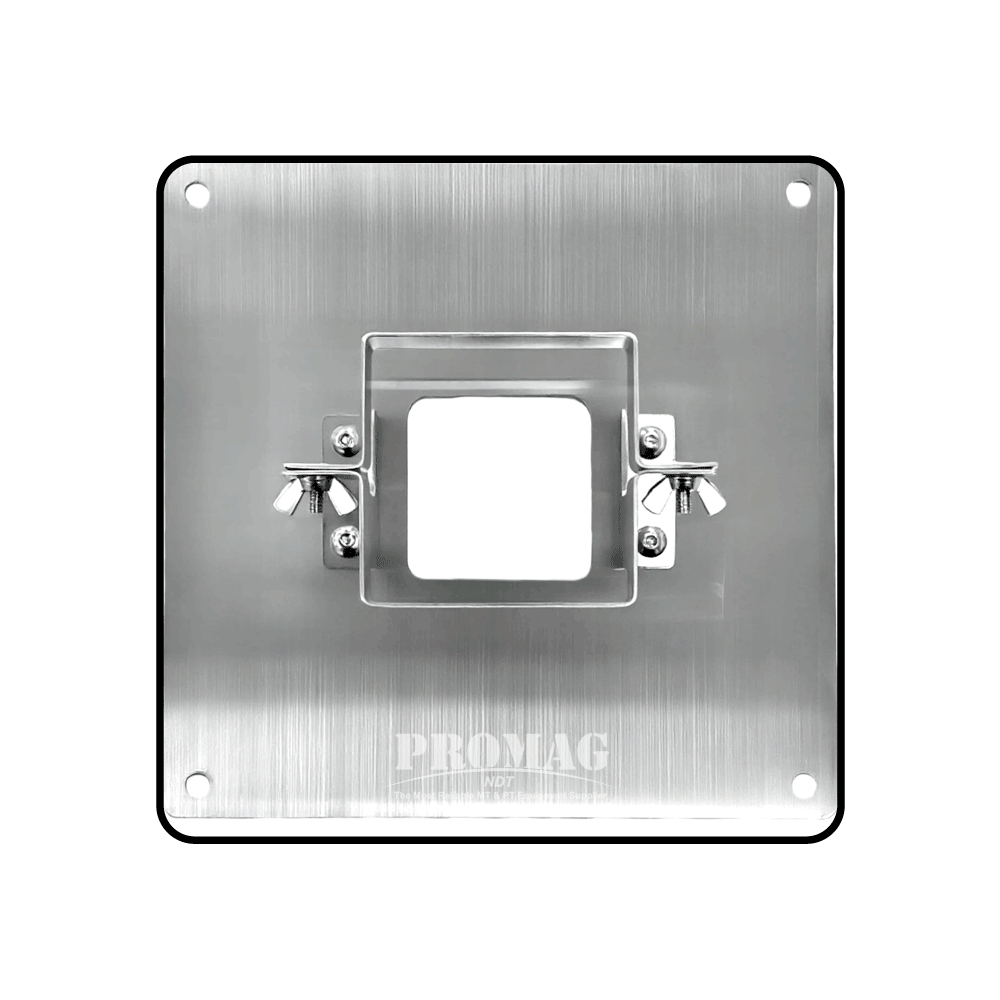

A. Plates For Victory	19 × 19 cm7.48 × 7.48 in	475 g (1.04 lb)

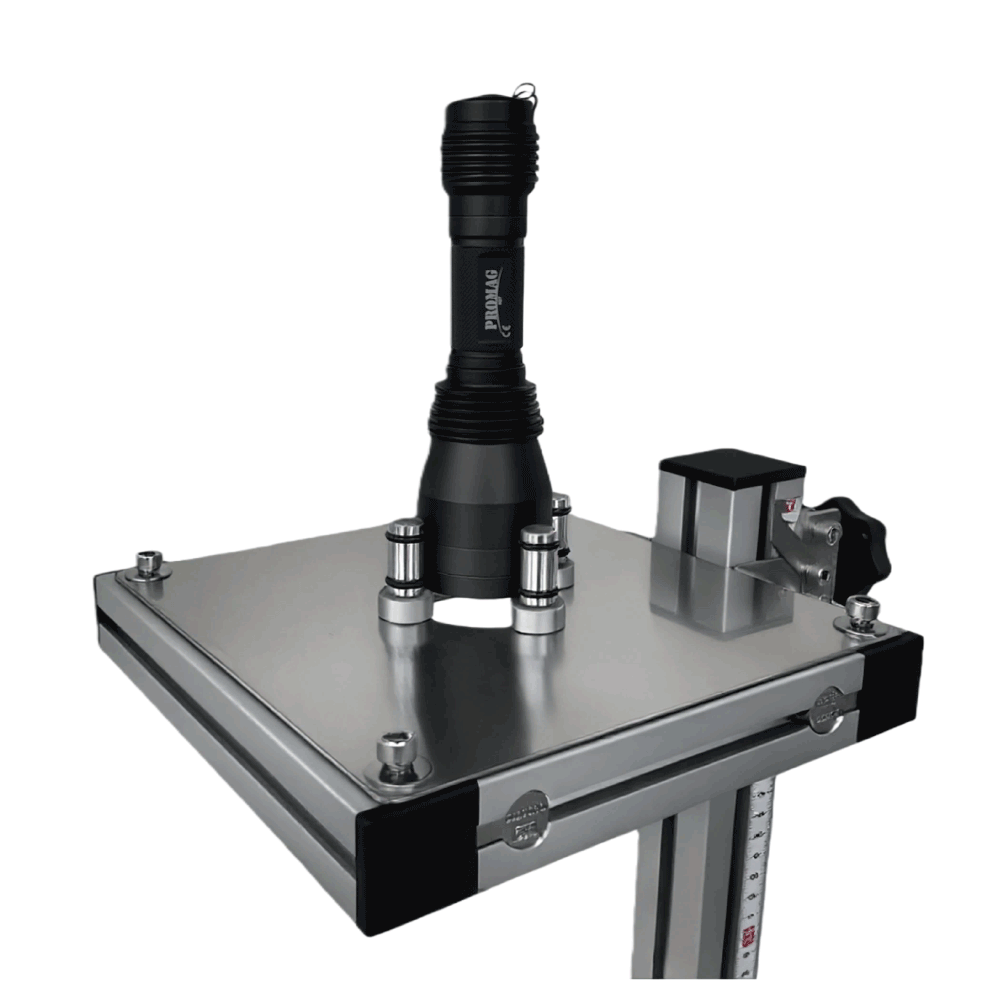

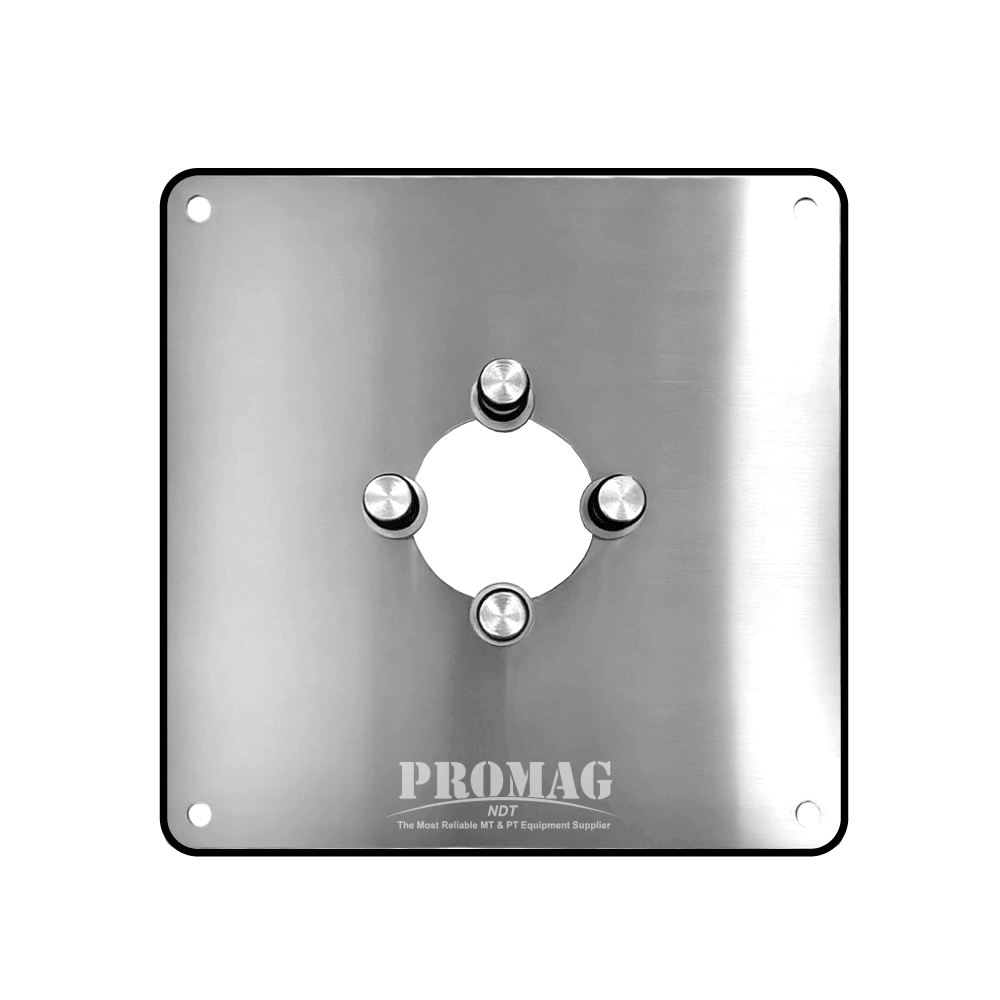

B. Plates For PROUV	19 × 19 cm7.48 × 7.48 in	540 g (1.19 lb)

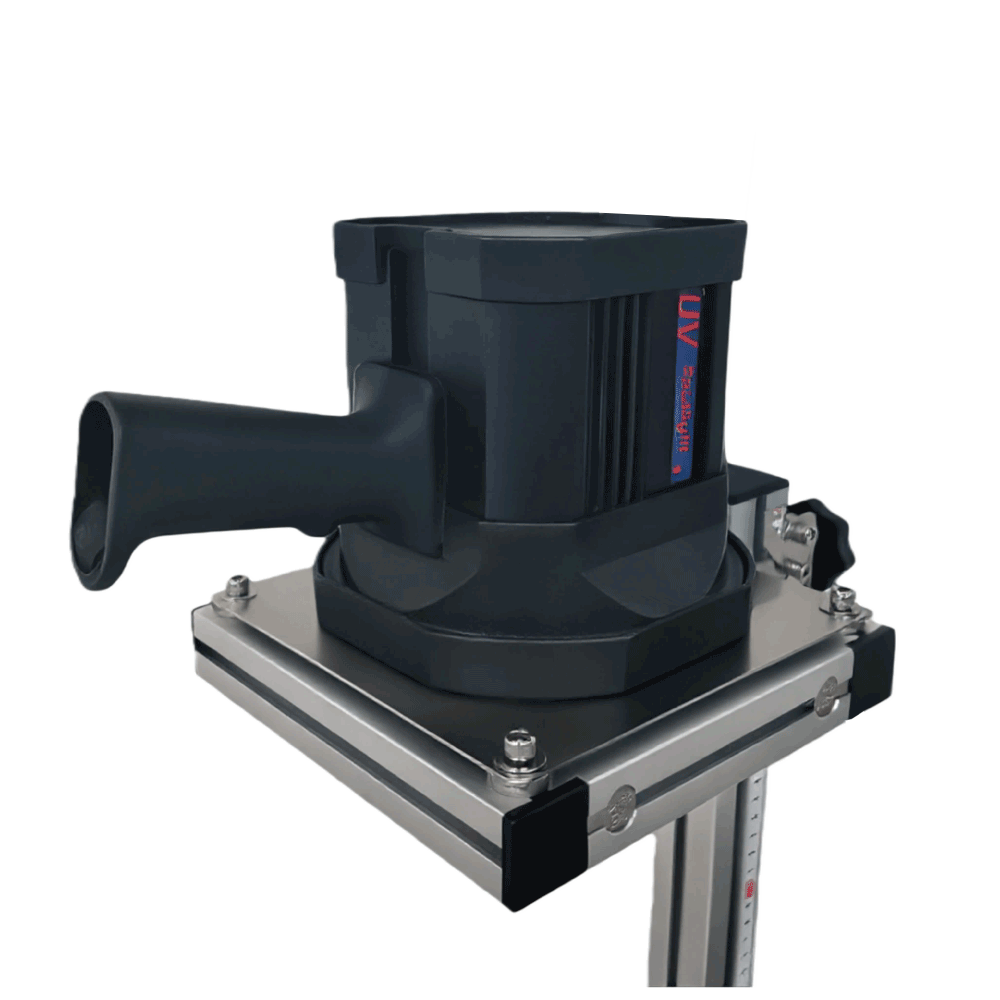

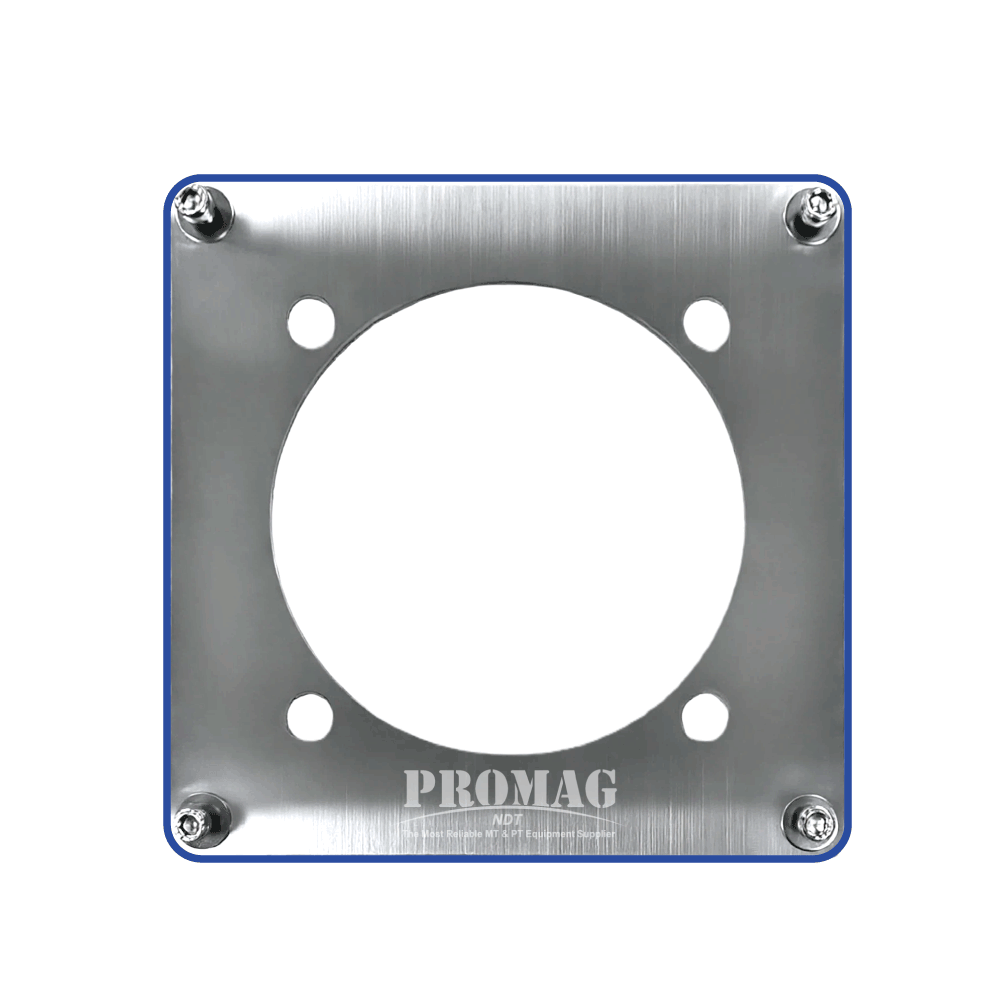

C. Plates For all UV blacklight brands	19 × 19 cm7.48 × 7.48 in	290 g (0.64 lb)
