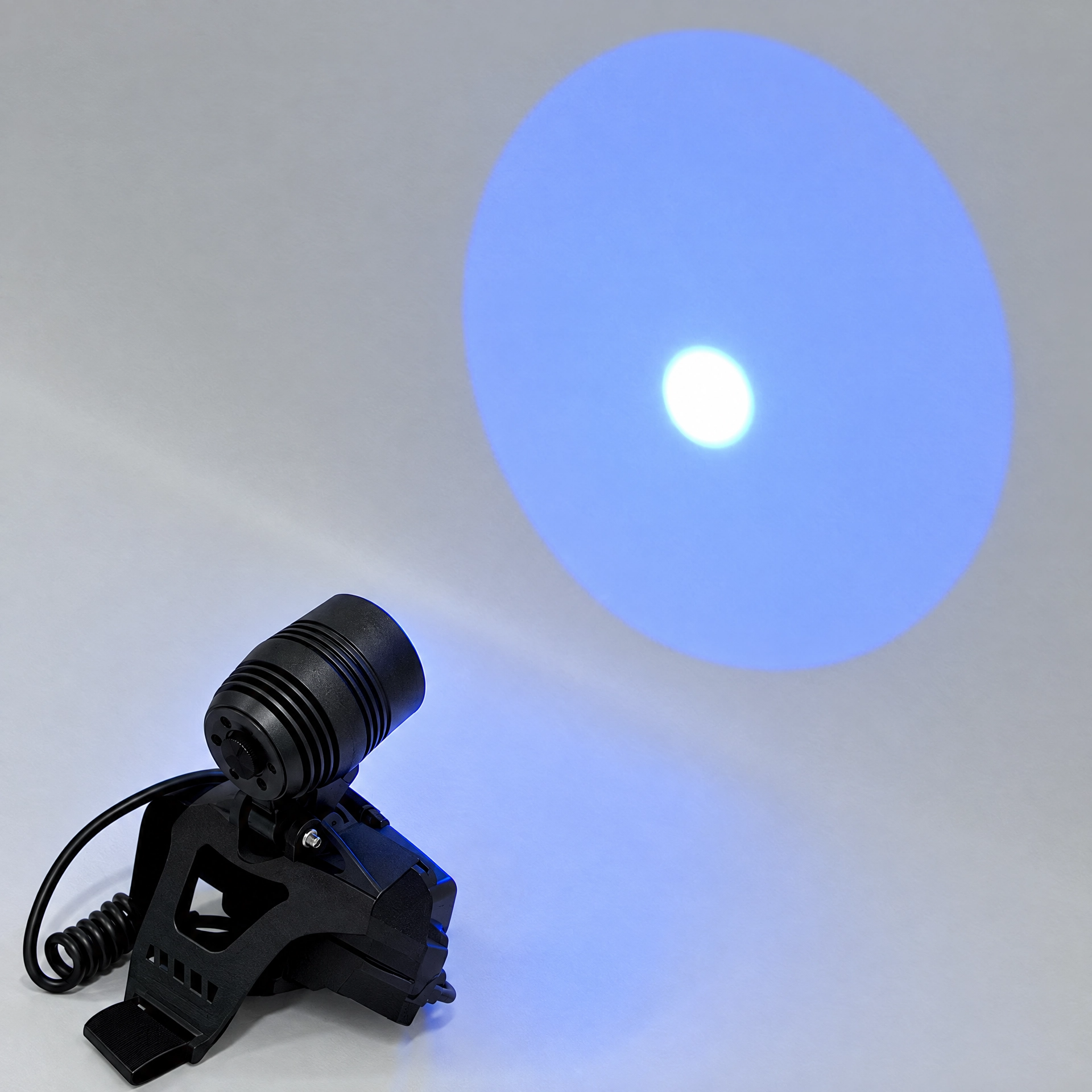

UV-A LED Inspection Headlamp | OWL-80

Promag

---------
---------

OWL-80

UV-A Inspection Headlamps

The PROMAG OWL-80 gives you both hands back. Wear it on your head or clip it to a safety helmet, and the light goes wherever you look — no fixture to reposition, no lamp to set down.

At 238 g with the battery mounted at the rear, the weight sits balanced and the cables stay out of the way. Tilt the head through 90° to aim the beam, then get on with operating the yoke, applying penetrant or recording what you find.

Five hours of continuous light per charge, with a spare battery and charger included. Goggles and carry case come in the box.

View Model Overview Technical Data

CE

EN ISO 3059

AMS 2647

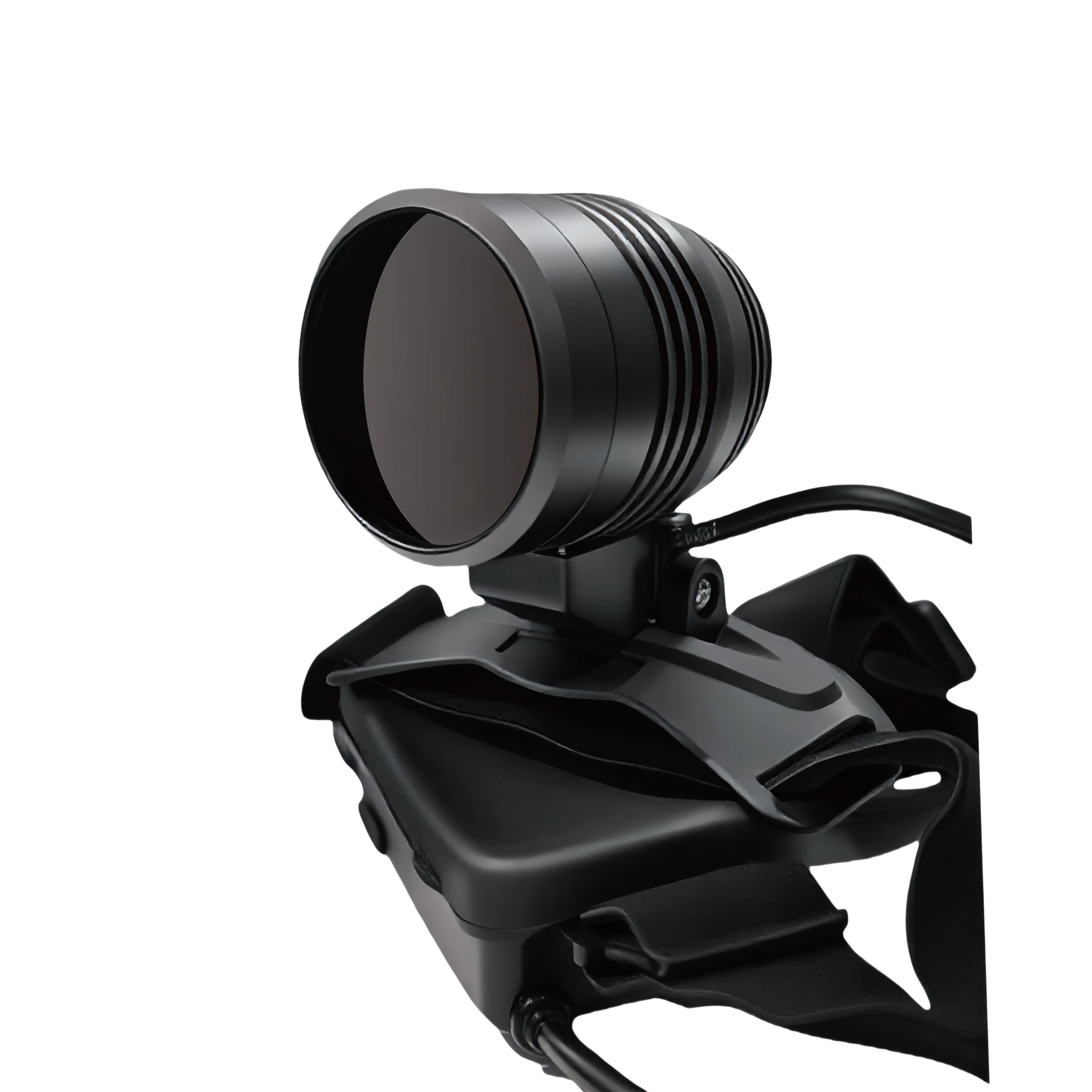

PROMAG OWL-80 UV-A inspection headlamp — front view

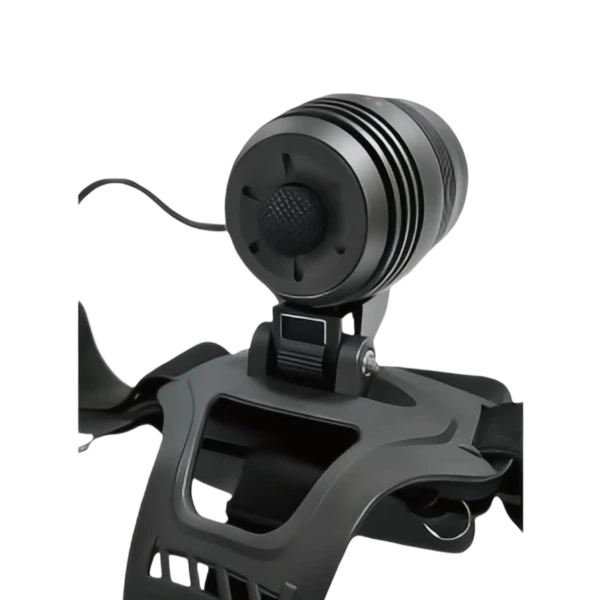

PROMAG OWL-80 worn on a safety helmet — field application

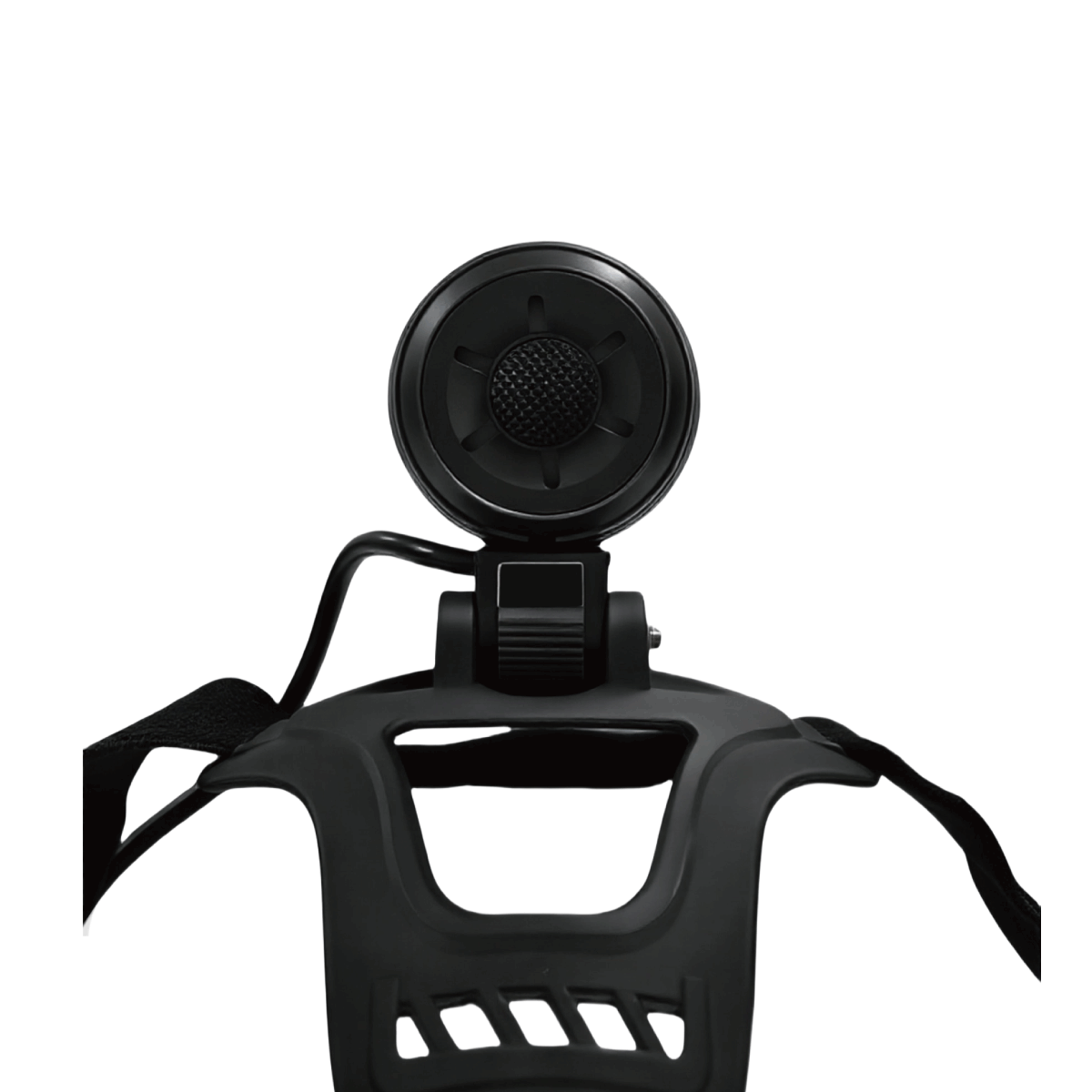

PROMAG OWL-80 headlamp mount — detail view

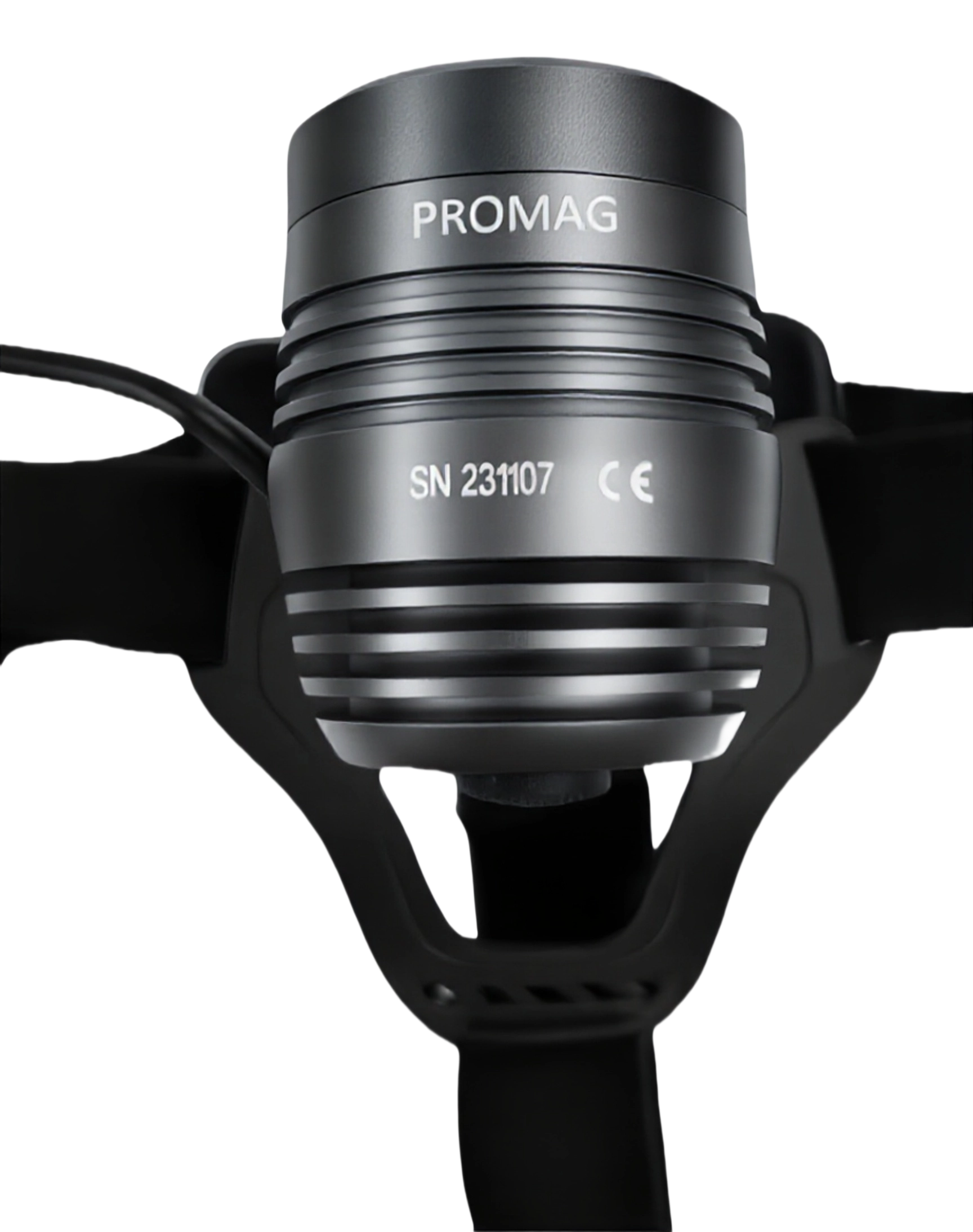

PROMAG OWL-80 headlamp body — rear detail

Reliable UV-A

Safe and pure UV-A content with limited UV-B and UV-C

No Cable Clutter

Rear-mounted battery keeps the design clean & convenient

238 g Weight

Ideal for tight spaces or long shifts

5 Hours Continuous

Extended battery time for frequent inspections

Adjustable Strap

Fits comfortably on your head or helmet for flexible positioning

OWL Series

Model Overview

OWL-80

High Intensity, UV-A Only

Engineered for experts in NDT (Non-Destructive Testing), Quality Control, and Leak Detection, the OWL-80 is a lightweight, hands-free UV-A solution. It perfectly balances high-intensity illumination with ergonomic design, allowing you to remain agile, safe, and precise even in the most demanding inspection environments.

UV Intensityat 15 in (38 cm)

≥ 10,000 μW/cm²

Coverage Areaat min. 1,000 μW/cm²

Ø 100 mm

Output

UV-A Only

Confined spaces, overhead work, and any inspection requiring both hands free

P/N	Type	UV Intensity at 15 in (38 cm) (μW/cm²)	UV-A Coverage Area at 15 in (38 cm) at minimum 1,000 μW/cm²	ASTM E3022	EN ISO 3059	AMS 2647
P7213	OWL-80 (UV-A Only)	≥ 10,000	100 mm (Diameter)	—

Product Specifications

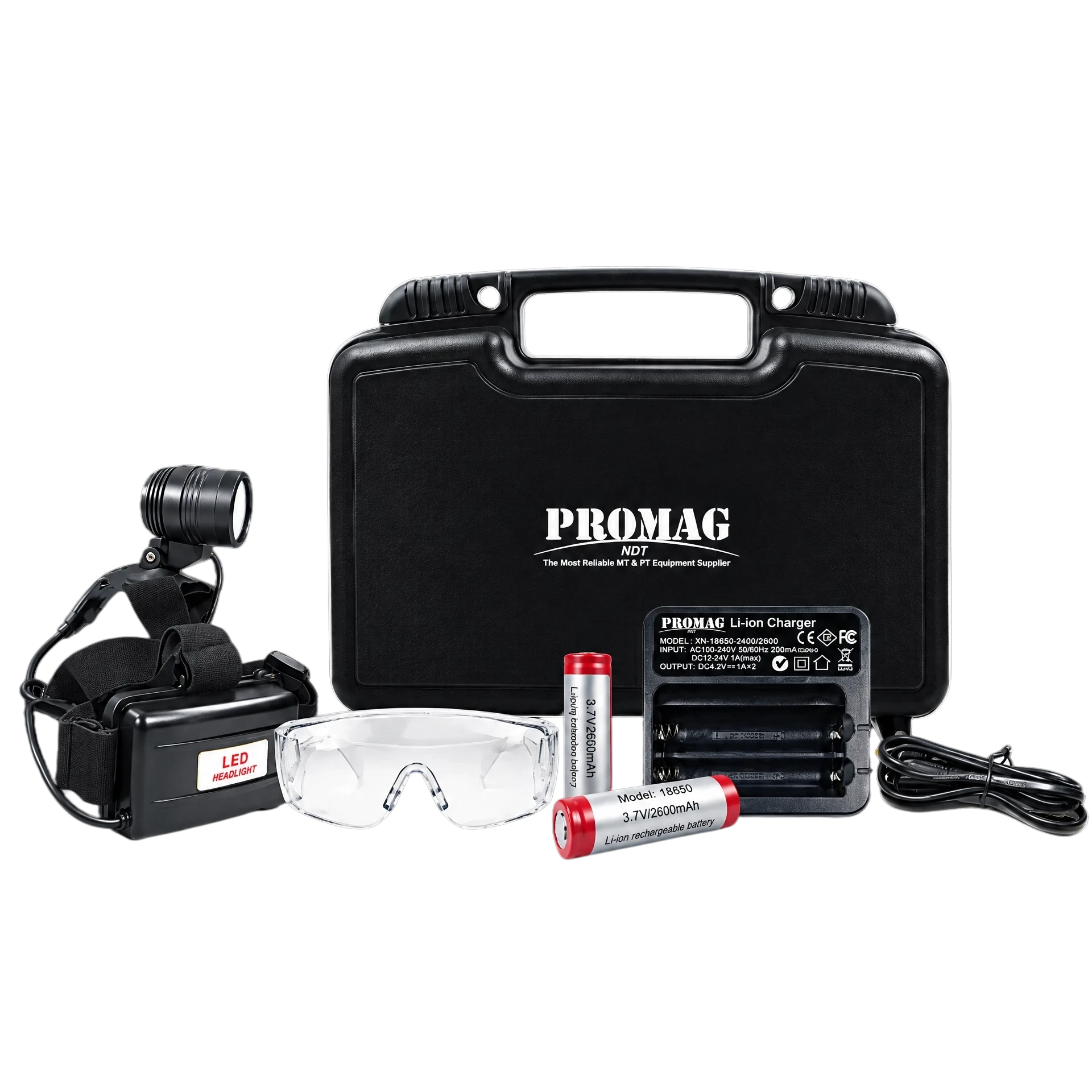

Standard Set

1

2

3

4

5

6

1

LED UV-A Headlamp × 1

2

Battery Charger Cord (1 m) × 1

3

Battery Charger × 1

4

Rechargeable Batteries × 2

5

UV-A Goggles × 1

6

Carry Case × 1

All product outlets follow US standards. Optional plug adapters are available for purchase to meet local requirements.

Technical Data

Function	Data
Power Supply	Battery
Light Source	LED UV-A
Headlamp Length	6.3 cm (2.48 in)
Outer Diameter	4.8 cm (1.89 in)
UV Filter Diameter	4 cm (1.57 in)
Weight	238 g (0.52 lb) (with battery)
Battery Run Time	5 hours continuous
Full Charge Time	approx. 4 hours
Power Requirements	90–240 VAC

*The outcome may vary depending on the actual usage conditions. *Once the product is disassembled, the warranty is void.

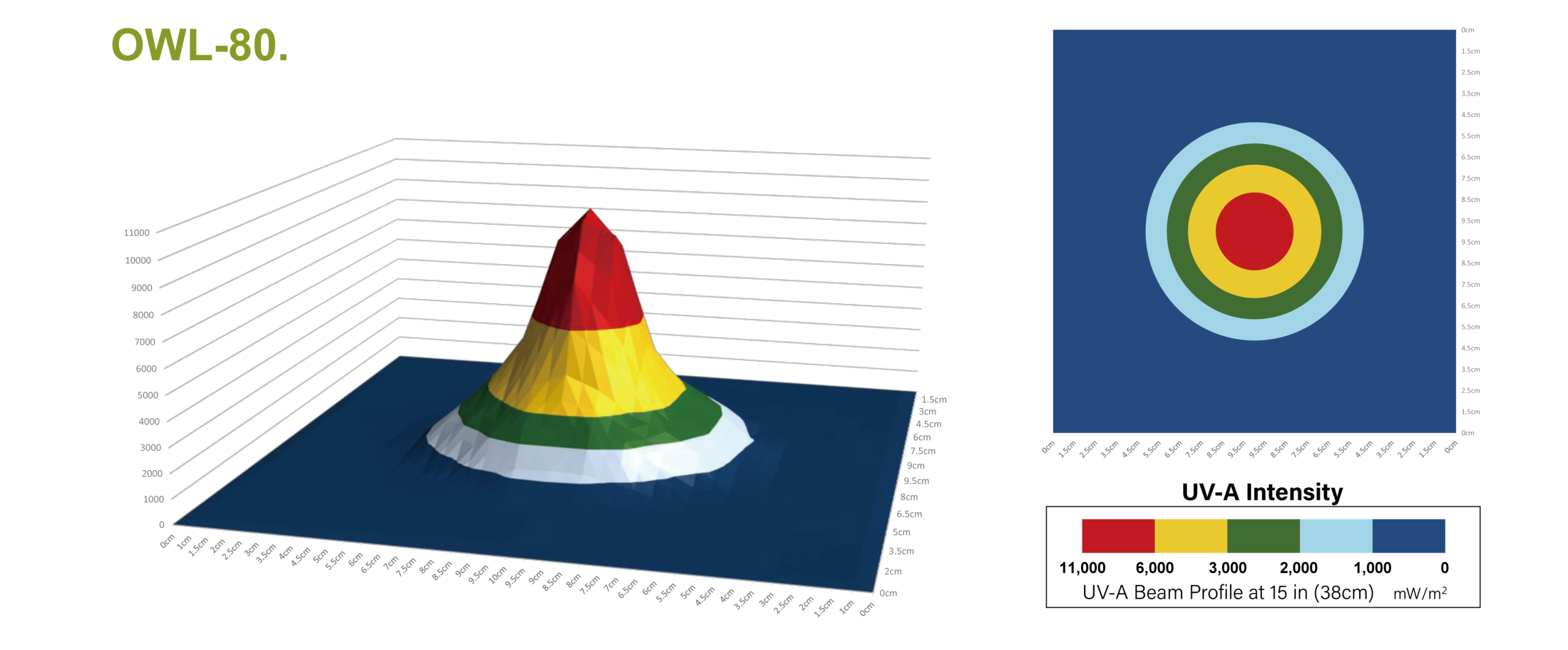

UV-A Beam Profiles

OWL-80 90 degree lighting angle adjustment on a safety helmet mount

90° Adjustment Lighting angle adjustment

OWL-80 UV-A lamp head front lens — high intensity output

High intensity UV

OWL-80 lamp housing with on/off function key

ON/OFF Button

Single Battery
Operation

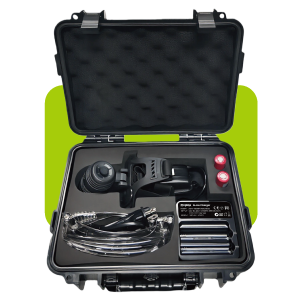

All-in-One
Portable Solution

Video

UV-A Inspection Headlamps

Watch on YouTube

Feature

Built for Confined Spaces and Overhead Work

01

Pure Illumination, Crystal-Clear Detail

A 365 nm UV-A LED with specialized filter glass eliminates visible-light interference and maximises UV transmittance, delivering instant full-power brightness and pure, high-contrast fluorescent indications.

02

Streamlined Cordless Design

No tangled cables. A rear-mounted battery balances the weight for comfortable wear while eliminating snag hazards, with the power switch placed at the back to prevent accidental shut-off.

03

Extended Runtime for Non-Stop Operation

A high-capacity Li-ion battery delivers up to 5 hours of continuous high-intensity output. A spare battery and charger are included as standard, supporting long shifts with zero power anxiety.

04

Versatile Adjustment and Secure Fit

A 90° adjustable beam angle directs light exactly where needed, and the high-elasticity rubber strap ensures a secure, non-slip fit on the head or on an industrial safety helmet.

05

Ultra-Compact and Portable

At 238 g, the lightweight structure reduces neck strain during extended wear, ideal for confined spaces or overhead work. Hands stay completely free to operate yokes, apply penetrant, or record data.
