AD-3

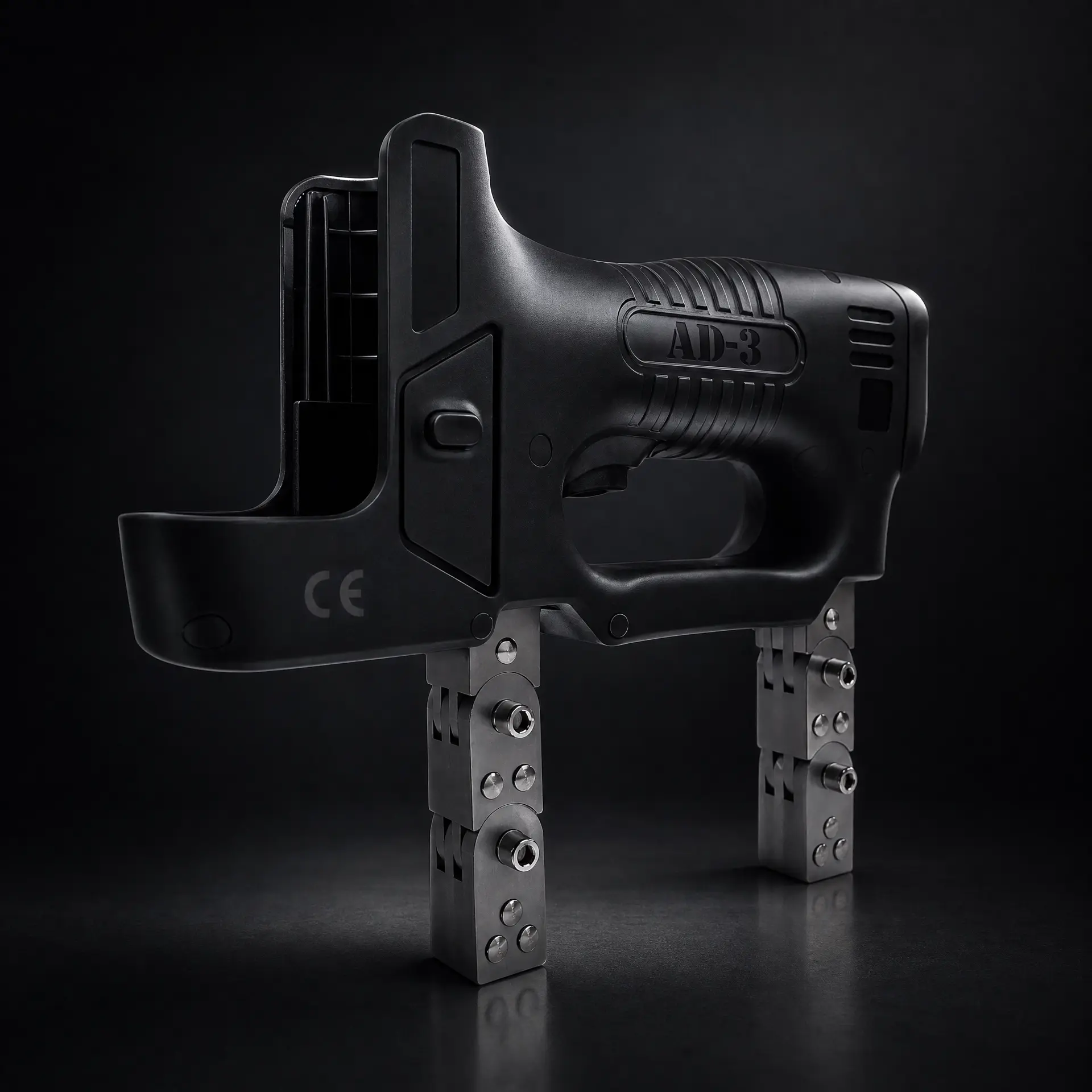

Electromagnetic Yoke

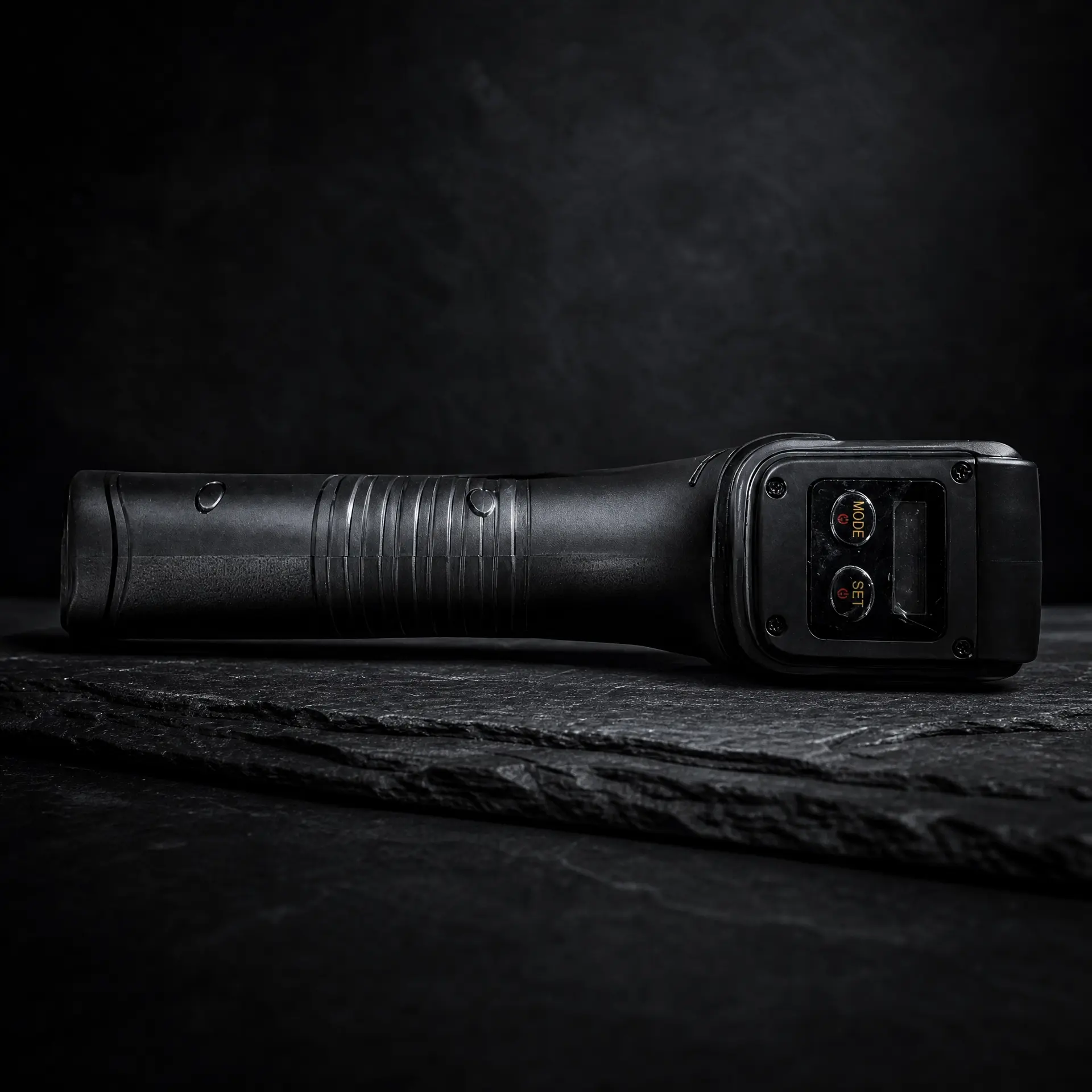

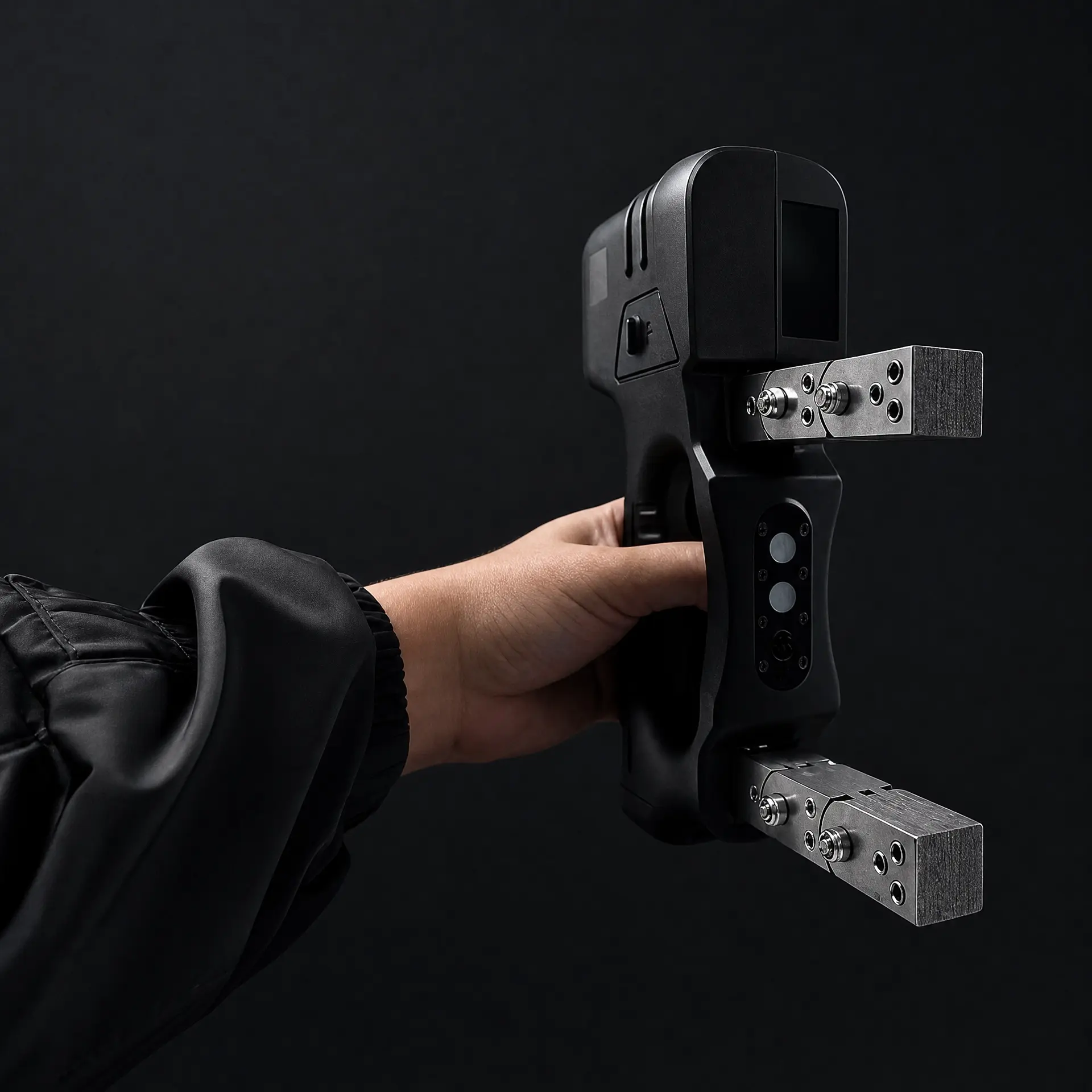

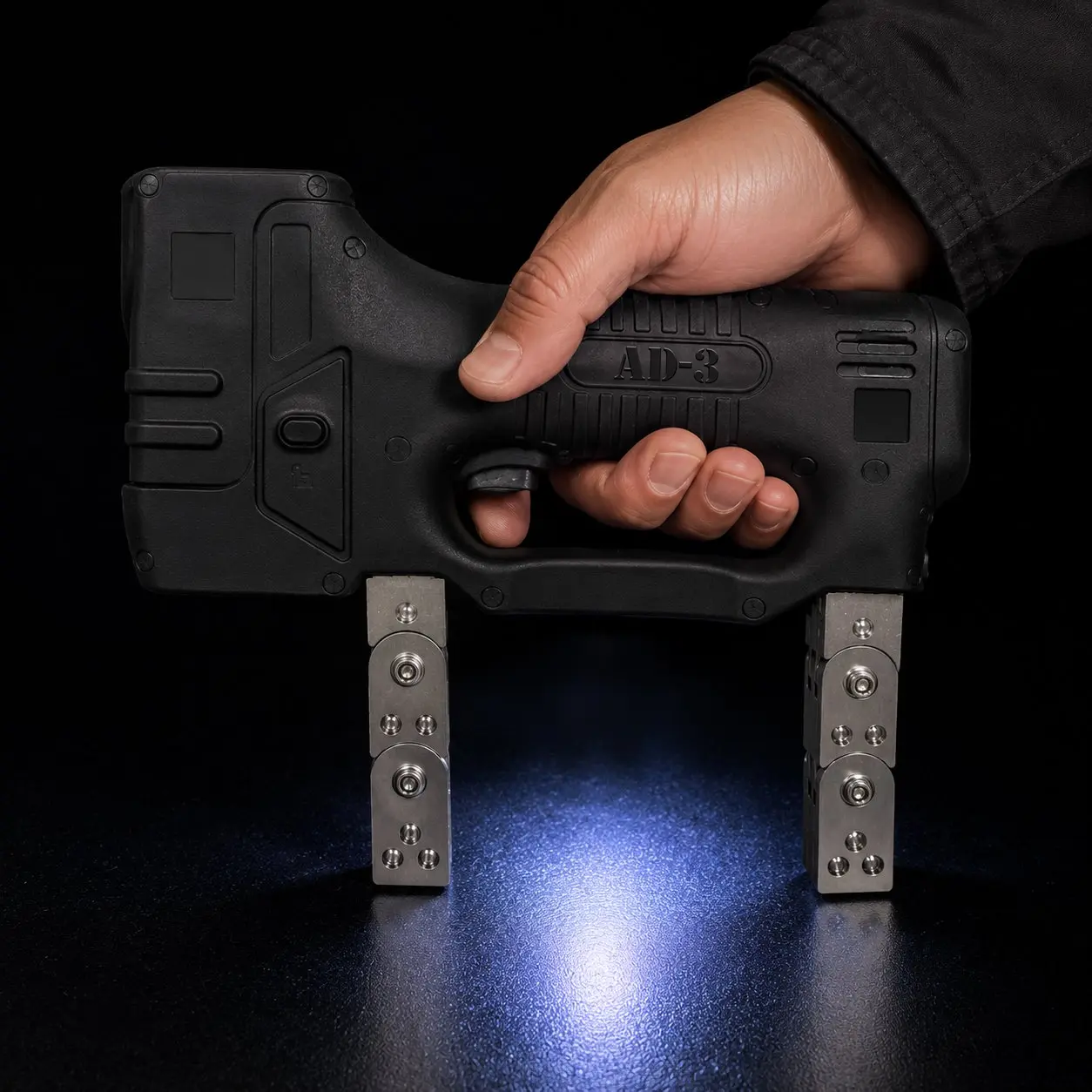

The PROMAG AD-3 Electromagnetic Yoke combines portability, durability, and versatility in one compact design. Powered by an integrated rechargeable battery, it eliminates the need for external power or cables, ensuring effortless inspections in any environment — even in tight or hard-to-reach spaces.
Built with IP54-rated dust and water resistance, the AD-3 delivers reliable performance in outdoor or industrial settings.
Its ergonomic, lightweight housing minimizes operator fatigue, enabling longer and more efficient inspections. With switchable UV-A and white light illumination, it's ideal for fast, precise magnetic particle testing in both fluorescent and visible methods.
Key Features
Engineered for Demanding Inspections
IP54 rating
Dust-tight & water-resistant for field durability
6hrs battery life
Easily usable in various environments
1,900g weight
Lightweight and ergonomic for reduced fatigue
AC/DC switchable
Two magnetization modes for versatile applications
Ergonomic design
Reduces operator fatigue enables long-duration inspections
Product Specifications

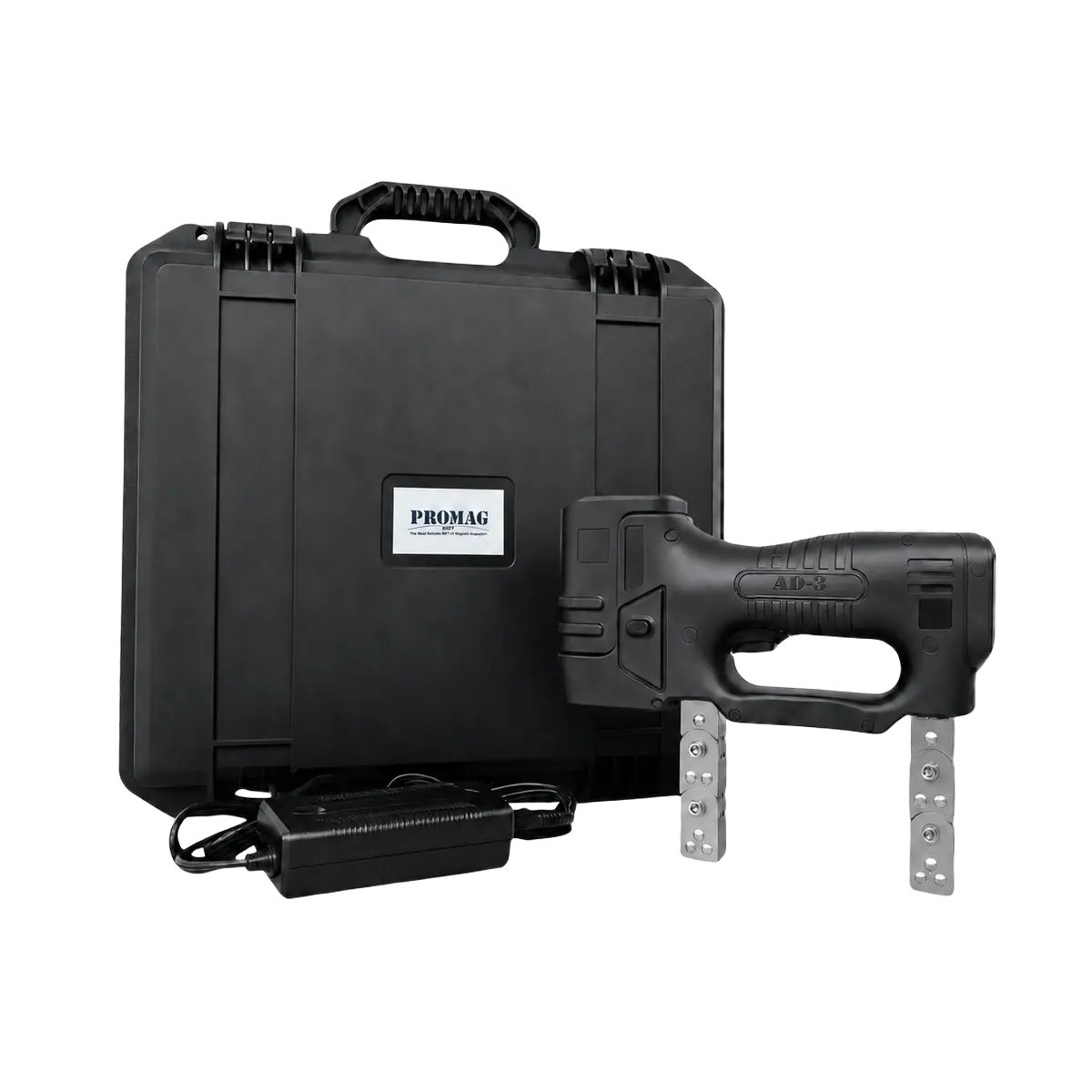

Standard Set
1
2
3
4
5
1
Yoke Body × 1
2
Rechargeable Battery × 1
3
Charging Cable × 1
4
Power Cable × 1
5
Carry Case × 1
Optional
+

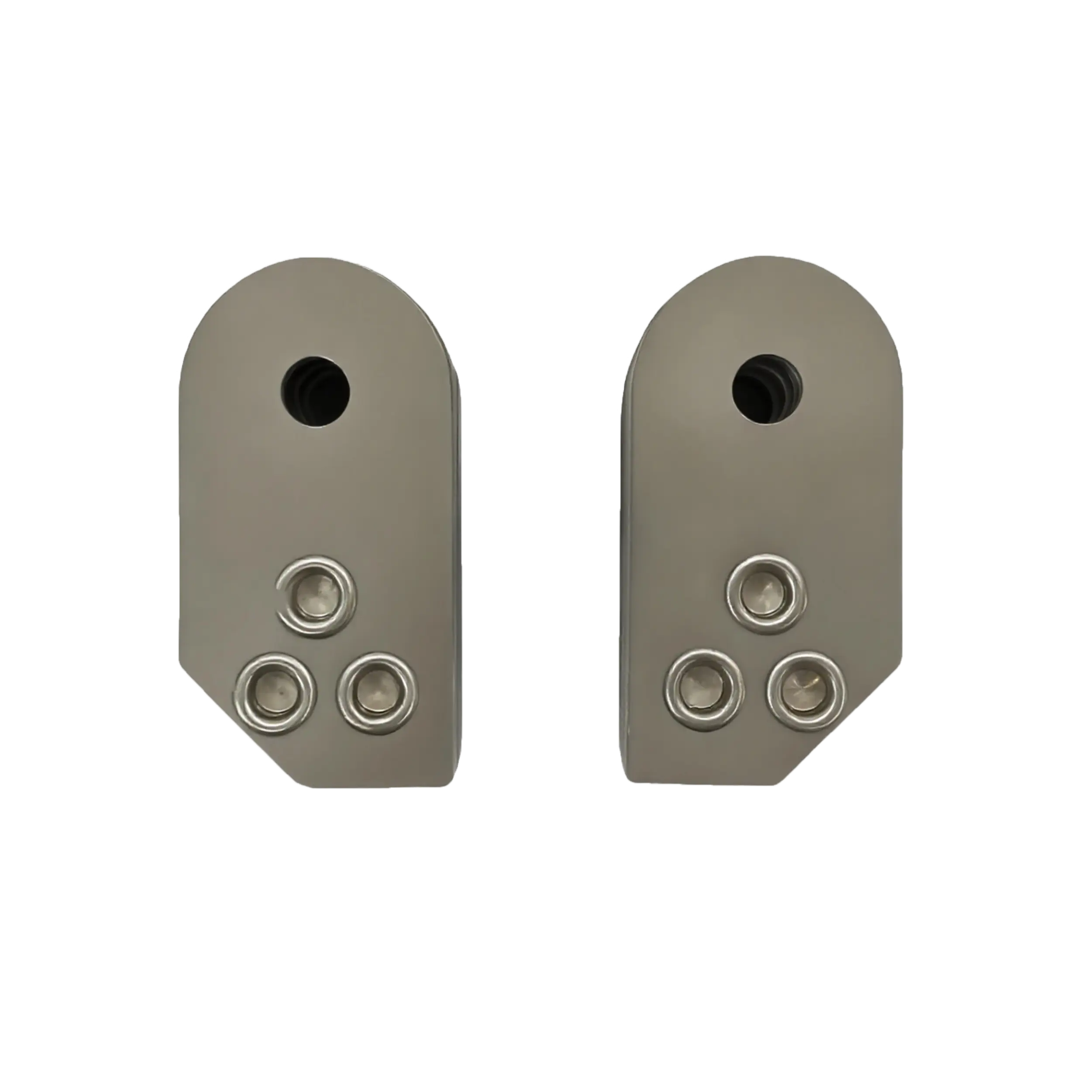

Angled Legs
All product outlets follow US standards.
Optional plug adapters are available for purchase to meet local requirements.
Technical Data
| Function | Data |
|---|---|
| Power Supply | 100–240 V AC, 50/60 Hz (for battery charger) / (AD-3 is powered by a dedicated battery) |
| Light Source | UV-A LED & White Light LED |
| Lifting Force | Comply with ASTM specifications |
| Dimension (L × W × H) | 21.9 × 5.4 × 19.1 cm / 8.6 × 2.1 × 7.5 in |
| Total Weight | 1,900 g / 4 lb |

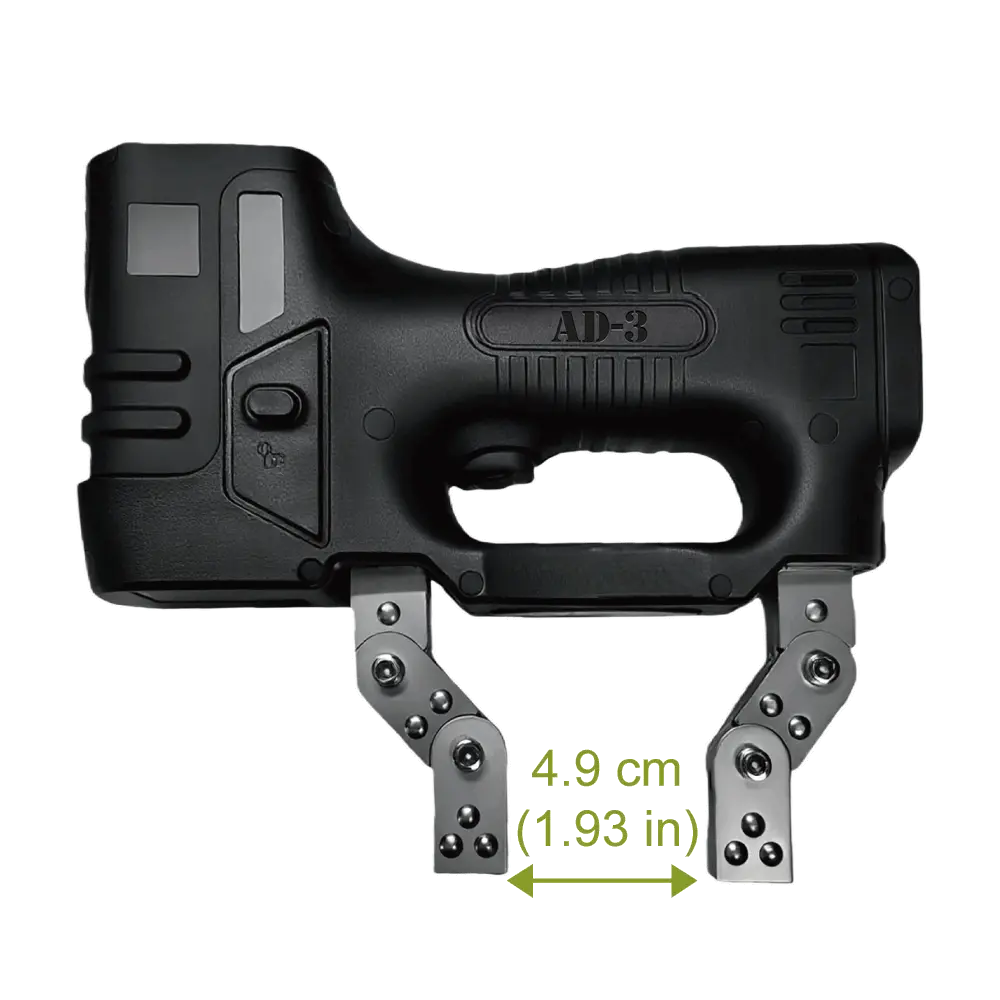

| Leg Span | 49–139 mm / 1.93–5.47 in |
| Battery Weight | 360 g / 0.79 lb |
| DC Battery Voltage | 14.8 V |
| Battery Capacity | 47.36 Wh |
| Battery Running 1 | 6 hrs (2s Magnetization / 60s Rest) |
| Battery Running 2 | 2.5 hrs (5s Magnetization / 30s Rest) |
| UV-A Light | ≧ 5,000 μW/cm² (Distance from lamp to part's surface) |
| White Light | ≧ 1,000 lux (Distance from lamp to part's surface) |
*Once the product has been disassembled, the waterproof warranty is void.
*Ensure both legs of the yoke are in good contact with the surface of the workpiece.

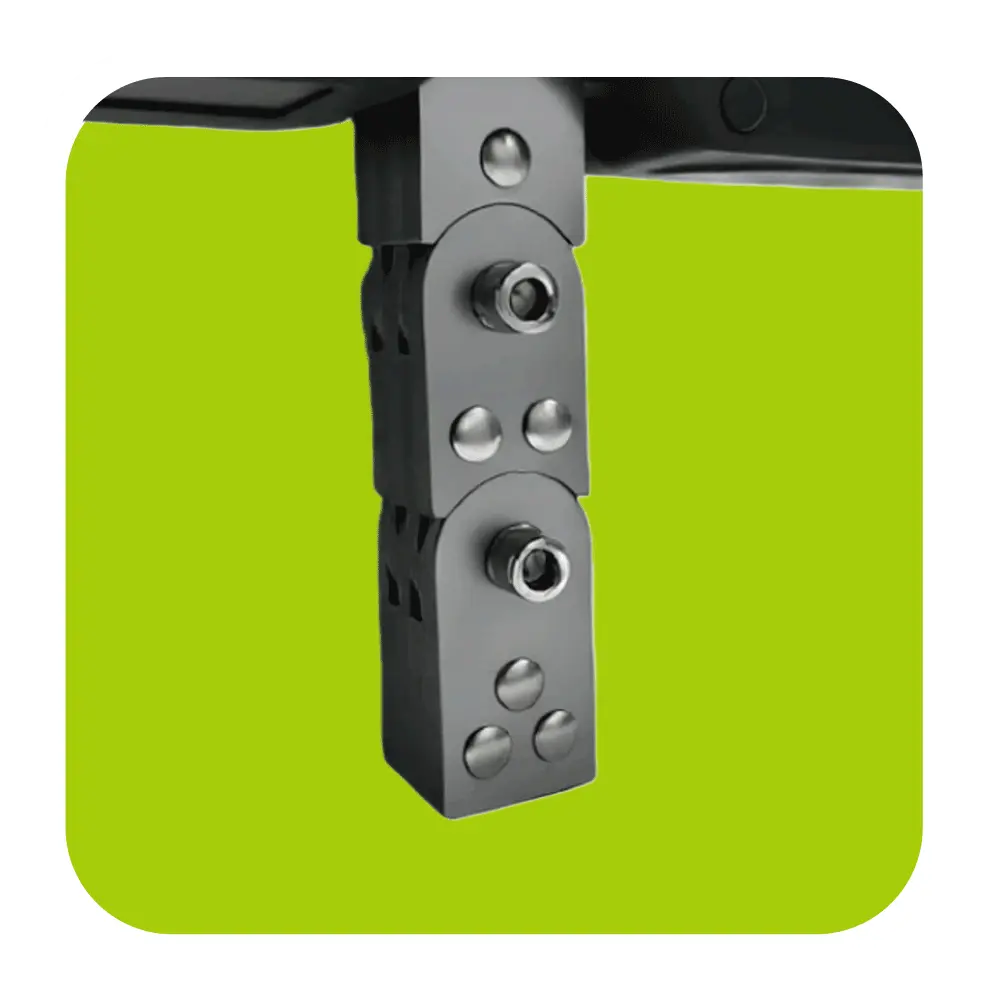

Adjustable Leg Spacing

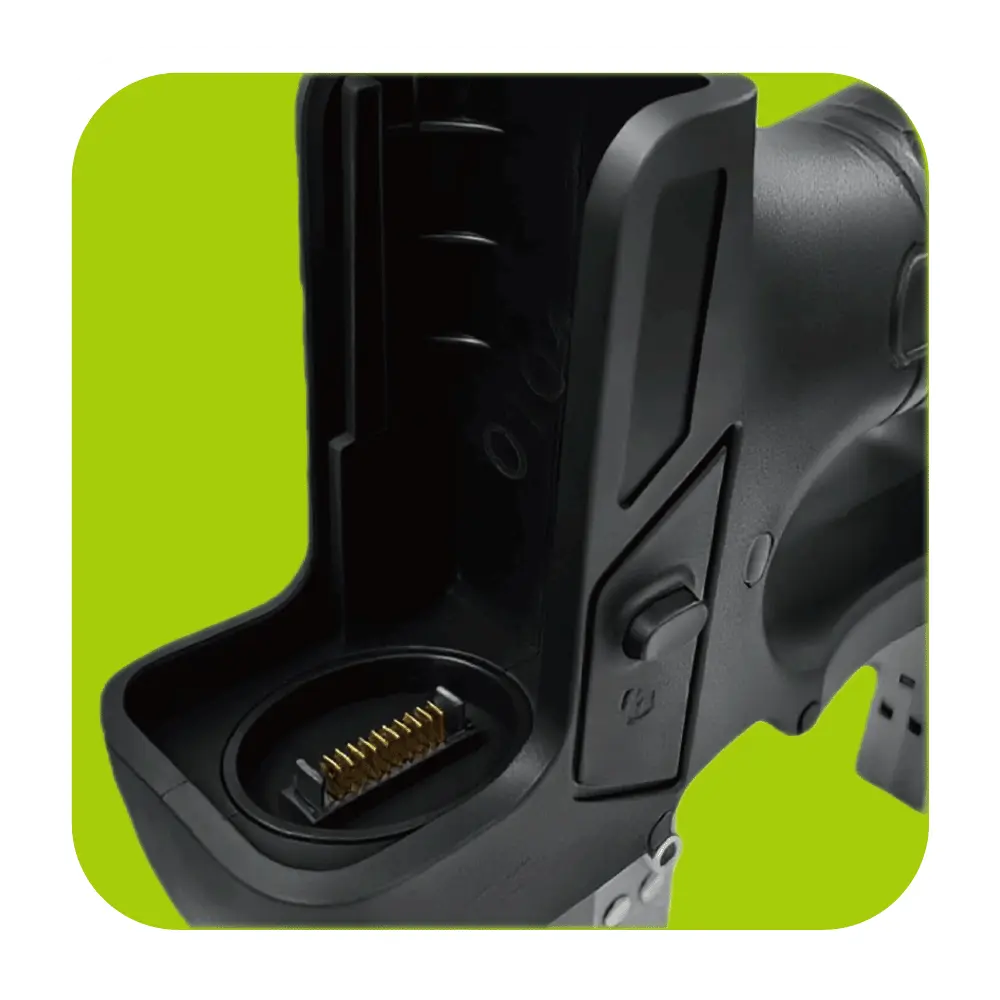

Battery Slot

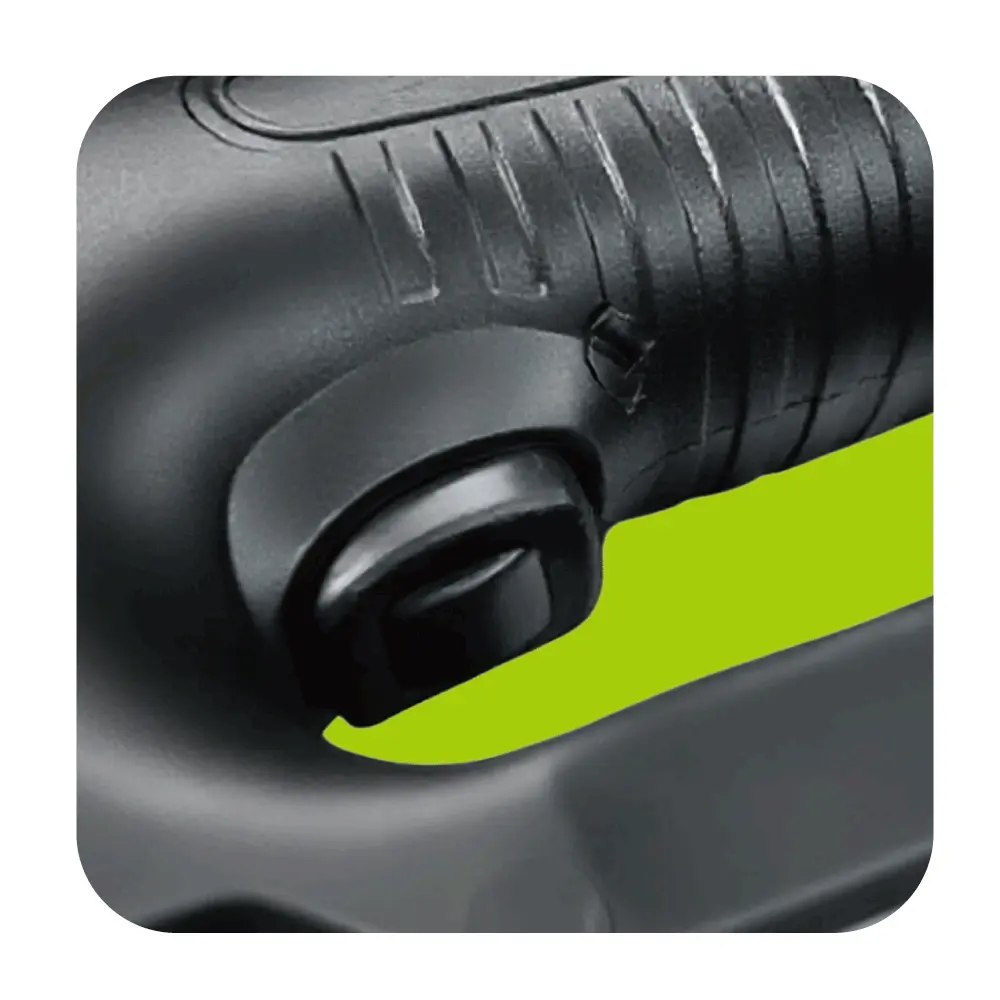

Magnetization Button

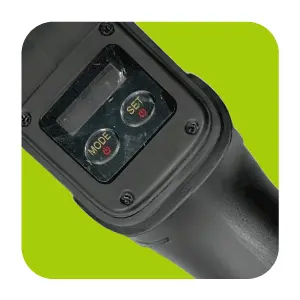

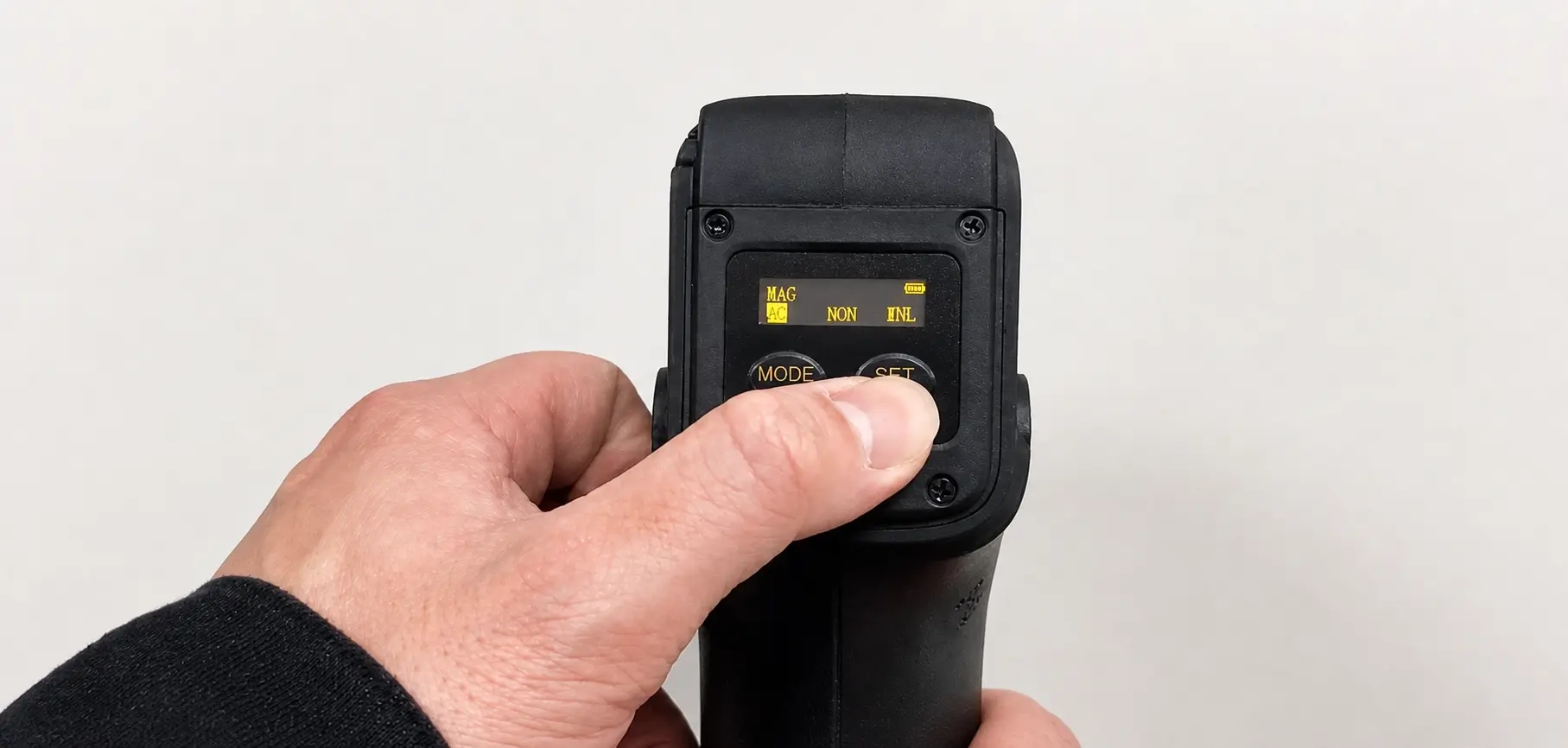

OLED Display Screen

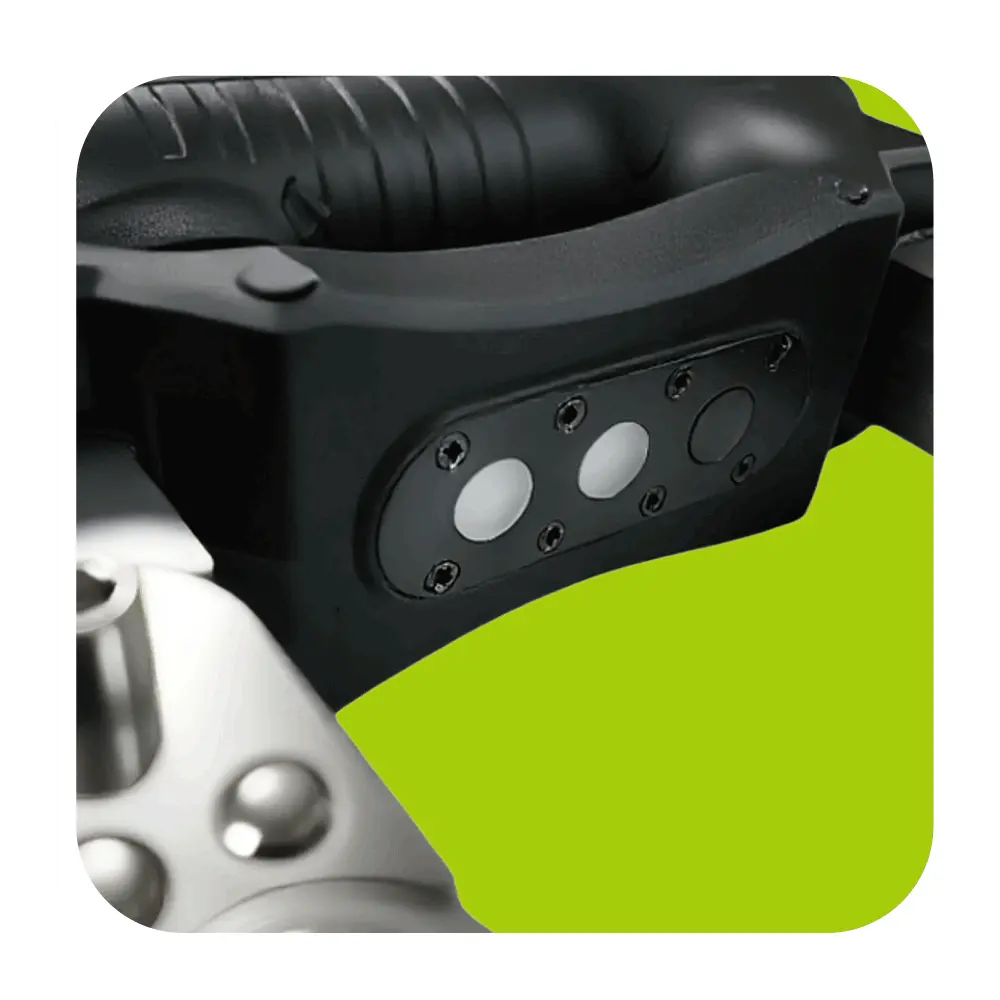

UV-A & White Light
Core Advantages
Everything You Need for Portable MPI
Integrated battery design — no external power required.
IP54 dustproof and waterproof protection.
Lightweight and ergonomic for reduced fatigue.
AC/DC magnetization options for diverse applications.
Switchable UV-A / white light for optimal visibility.
Common Questions
Electromagnetic Yoke FAQs
How long is the battery life, and does the current selection affect it?
Battery Life: Under standard operating conditions, the battery lasts approximately 6 hours on a duty cycle of 2 seconds of magnetization followed by a 60-second rest period, or approximately 2.5 hours on a more frequent duty cycle of 5 seconds of magnetization followed by a 30-second rest period. This rest period is essential to prevent overheating and potential device failure.Current Selection: Choosing between AC and DC modes does not affect the overall battery life.
Does diminishing battery level affect performance? (e.g., Will the lifting force decrease?)
No. The AD-3 is designed to maintain consistent magnetic performance until the battery is nearly exhausted. While it is a natural characteristic of lithium batteries to see a gradual decrease in total capacity over several years of use, you will not experience "magnetic fade" during a single shift's operation.
The manual mentions a 5-second maximum "on" time. Does the yoke shut off automatically?
The AD-3 does not feature an automatic shut-off. The 5-second limit is a recommended operational guideline to ensure the longevity of the device. For optimal performance and safety, we advise following the 5-second ON / 30-second OFF cycle.
When using AC, does the unit achieve a 30 Gauss field strength on the part surface?
Field strength on the surface of a part is highly dependent on the magnetic permeability of the specific material being tested. Therefore, we cannot guarantee a fixed Gauss rating across all materials, as the flux density will vary based on the workpiece properties.
How does this unit perform in harsh weather, such as dusty or rainy environments?
The AD-3 is built for durability with an IP54 rating, making it both dust-tight and water-resistant. This provides excellent protection against the elements, ensuring reliable performance in typical outdoor or industrial environments involving rain or dust.
Do you offer loaner or demo units for testing before purchase?
While we do not provide loaner units, we offer exclusive demo pricing for new clients interested in evaluating the AD-3. Please contact our sales team for detailed pricing and more information on how to acquire a trial unit.
