HANSA IP67 Overhead UV-A LED Inspection Lamp

Promag

---------
---------

HANSA

Overhead UV-A Lamps

The PROMAG HANSA is an inspection tool designed to perfectly balance performance, durability, and portability. Built for demanding fluorescent and visible-light inspection environments, it delivers a stable UV-A spectrum with the ruggedness to survive daily field use.

HANSA carries an IP67 rating for complete dust-tight and water-resistant protection, and a modular system that lets multiple units connect together for expandable coverage. Rated for a 50,000-hour lifespan, it operates reliably across a 30 ℃ – 50 ℃ range.

View Model Lineup Technical Data

RRES 90061

AITM 6-1001

ASTM E3022

EN ISO 3059

AMS 2647

PROMAG HANSA UV-A overhead lamp — front view

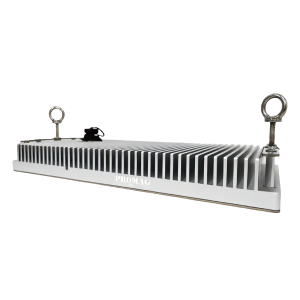

PROMAG HANSA UV-A overhead lamp — detail view

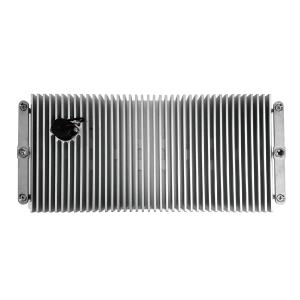

PROMAG HANSA UV-A overhead lamp — field application

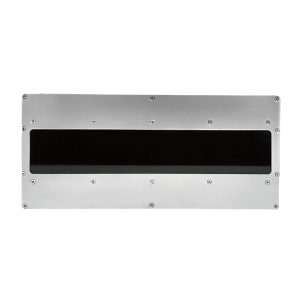

PROMAG HANSA UV-A overhead lamp — field application angle

IP67 Rating

Dust-tight & water-resistant for field durability

365 ± 5 nm

Optimized UV-A spectrum

Modular System

Expandable lamp modules

50,000 Lifespan

Long-lasting and stable performance

30 ℃ ~ 50 ℃

Low-temperature, energy-saving lamp body

HANSA Series

Model Lineup

HANSA-AS1

Standard Intensity

Calibrated for standard-duty fluorescent penetrant and magnetic particle inspection, delivering consistent sub-5,000 μW/cm² output across the full coverage zone for everyday booth and field checks.

Intensity< 5,000 μW/cm²

ComplianceRRES 90061, AITM 6-1001, ASTM E3022

Coverage55 × 35 ± 2 cm

OutputUV-A Only

HANSA-SD

High Intensity

Built for high-sensitivity inspection lines, delivering ≥ 8,000 μW/cm² output across the full coverage area for fast, high-contrast flaw detection on structural and weld inspection work.

Intensity≥ 8,000 μW/cm²

ComplianceASTM E3022

Coverage55 × 35 ± 2 cm

OutputUV-A Only

P/N	Type	UV-A Intensity at 15 in (38 cm) (μW/cm²)	UV-A Coverage Area at 15 in (38 cm) at minimum 1,000 μW/cm²	RRES 90061	AITM 6-1001	ASTM E3022
P7722	HANSA-AS1 (UV-A Only)	< 5,000	21.65 × 13.8 ± 0.8 in (55 × 35 cm ± 2 cm)
P7726	HANSA-SD (UV-A Only)	≥ 8,000	21.65 × 13.8 ± 0.8 in (55 × 35 cm ± 2 cm)	—	—

Product Specifications

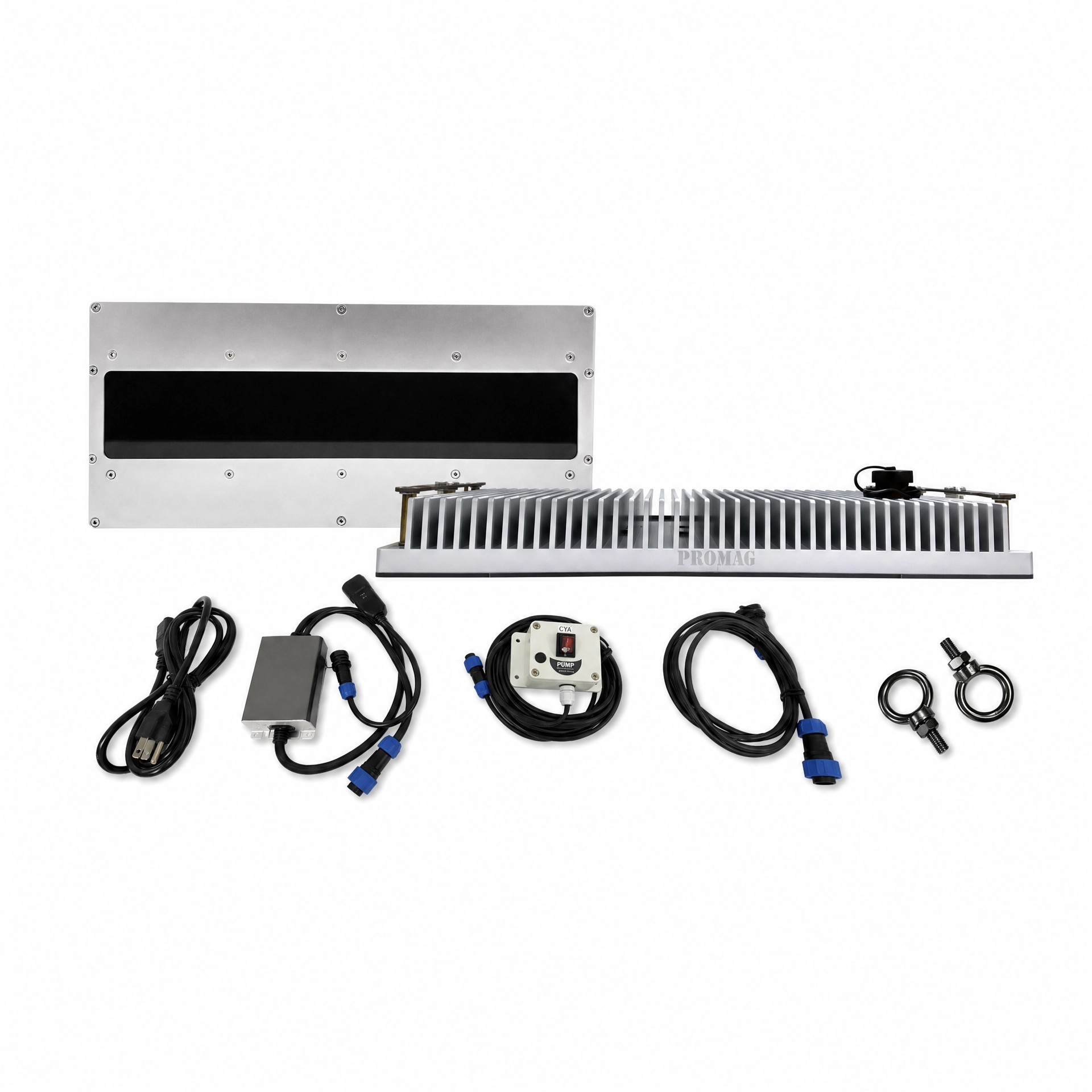

Standard Set

1

2

3

4

5

6

Chain

Mounting Yoke

1

Overhead UV-A Lamp × 1

2

Ring Hook × 2

3

Lamp Extension Cord (2 m) × 1

4

Power Switch Controller (5 m) × 1

5

Power Transformers × 1

6

Power Cord (1.8 m) × 1

Optional

1

Chain

2

Mounting Yoke

All product outlets follow US standards. Optional plug adapters are available for purchase to meet local requirements.

Technical Data

Function	Data
Power Supply	Mains powered
Light Source	LED UV-A
Dimensions (L × W × H)	32.5 × 14.5 × 6 cm (12.8 × 5.71 × 2.36 in)
Weight	2,515 g (5.54 lb)
Visible Light in UV-A Mode (38 cm)	≤ 2 foot-candles (20 lux)
Power Requirements	90–240 VAC
