Our Systems
Four System Lines. One NDT Partner.
MPI · Magnetic Particle
For Steel and Iron Parts
Detects
Surface and near-surface cracks in ferromagnetic parts.
Up to 10,000 A
Magnetizing current
AC · HWDC · FWDC
1-phase & 3-phase
< 2 Gauss
Residual field after demag
FPI · Fluorescent Penetrant
For Any Non-Porous Material
Detects
Surface-breaking cracks in magnetic and non-magnetic metals, including titanium and nickel-based superalloys.
Method A / B / D
Water-washable & post-emulsified
4 line types
Manual to fully automated
ASTM E1417
AMS 2644 · ASTM E165 · NADCAP
PAUT · Ultrasonic Phased Array
For Flaws Deep Inside the Part
Detects
Internal cracks, inclusions, voids and lack of fusion, with no radiation isolation required.
Up to 70%
Faster than conventional UT
64 / 128
Array elements
S / B / C-Scan
Real-time color imaging
CLN · Chemical Cleaning
Before and After Inspection
Does
Prepares part surfaces for FPI and MPI, removes residues afterward, and runs surface treatment for production.
5 process lines
Cleaning to electroplating
Up to 80%
Water saved via cascade rinse
SCADA
Batch records built to support Nadcap audits
MPI Systems
Magnetic Particle Inspection
Find Surface and Near-Surface Cracks in Steel
MPI finds cracks at and just below the surface of ferromagnetic parts. PROMAG covers every scale, from a cordless yoke to fully automated in-line systems.
Process Lines

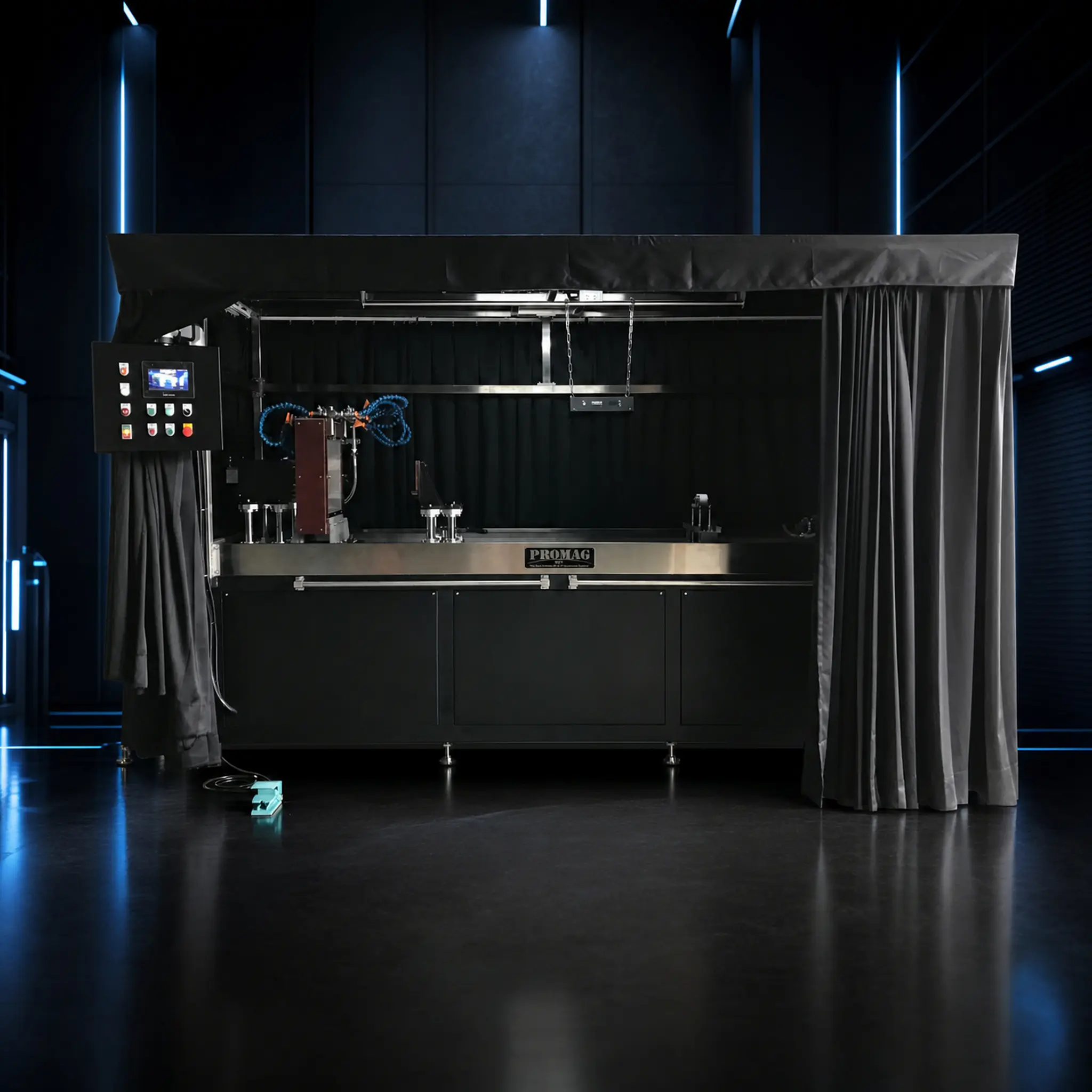

APEX
Stationary Wet Bench
Stationary MPI bench for production inspection, available in Models A, X and Y.
Learn MoreMPG Power Packs
Mobile Power Generator
Mobile power supply for on-site, weld and large-part inspection.
Learn MoreECO MPI Series
Compact Wet Bench
Wet stationary bench for sampling, QC stations, laboratories and academic institutions.
Learn MoreAD-3
Electromagnetic Yoke
Battery-powered yoke with switchable UV-A and white light.
Learn MoreCustomized System
Automated Line
Automated MPI systems with non-contact magnetization and data traceability.
Learn MoreDemagnetization
Tunnel & Portable
Removes residual magnetism after inspection.
Learn MoreFPI Systems
Fluorescent Penetrant Inspection
Reveal Fine Surface Cracks
FPI finds surface-breaking cracks on any non-porous material, magnetic or not. PROMAG builds complete FPI lines, from a compact manual bench to a fully automated production line.
Process Lines
ECO Manual
Compact All-in-One Bench
Compact FPI system for limited floor space and budget.
Learn MoreSemi-Automatic
Program-Controlled Line
Operators load parts while the controller runs programmed process sequences.

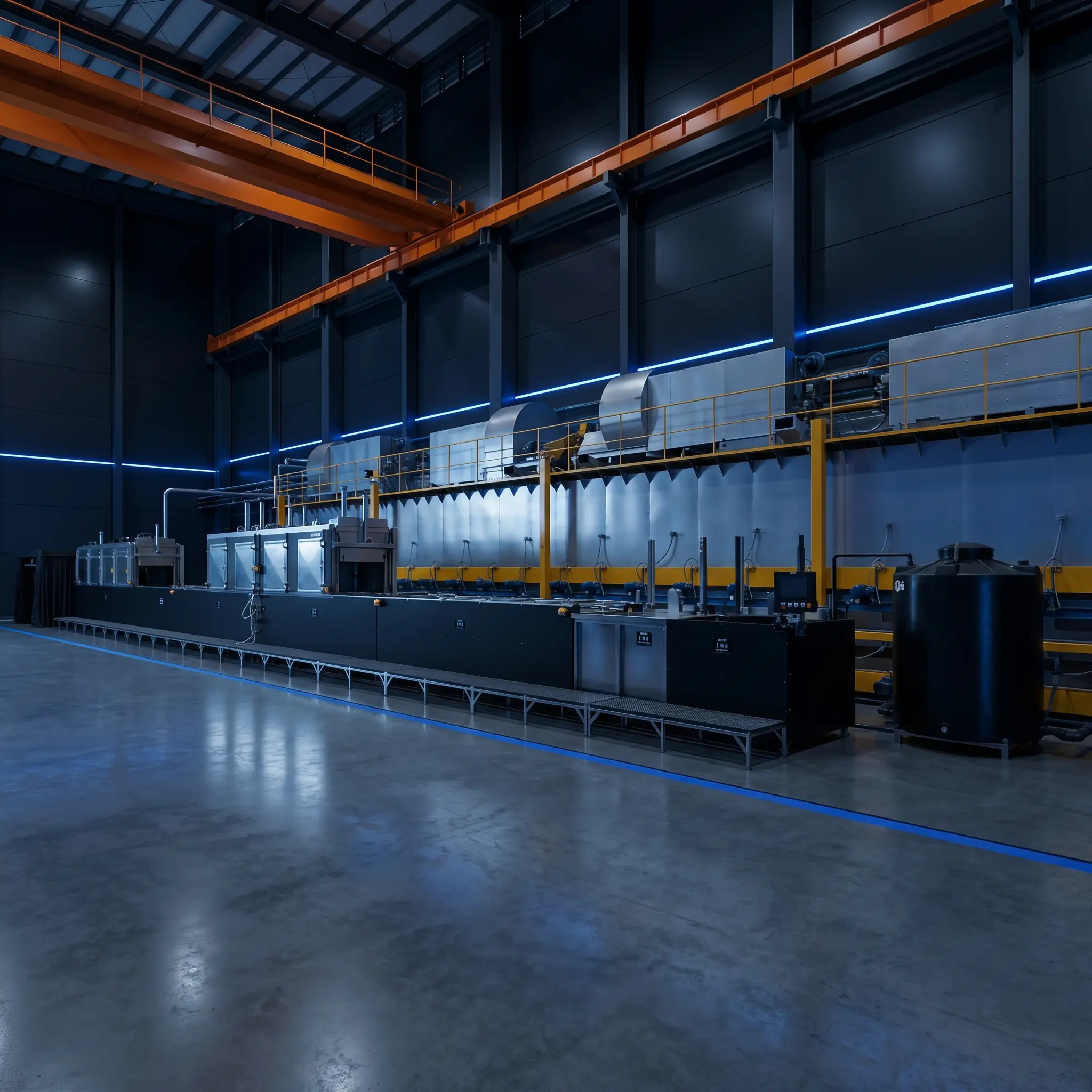

Learn MoreFully Automated
Production Line
Built for high-volume production and stringent aerospace specifications.
Learn MoreCustomized Series
Engineered-to-Order Lines
Custom designs for complex geometries, oversized parts or unconventional layouts.
Learn MorePAUT Systems
Look Inside the Part
MPI and FPI only reveal surface and near-surface flaws. PROMAG phased array systems detect internal flaws in steel pipes, bars, gas cylinders and railway components in real time. They are available as standalone stations or complete turnkey inspection lines.
Process Lines
For Wheel
Railway wheel inspection.

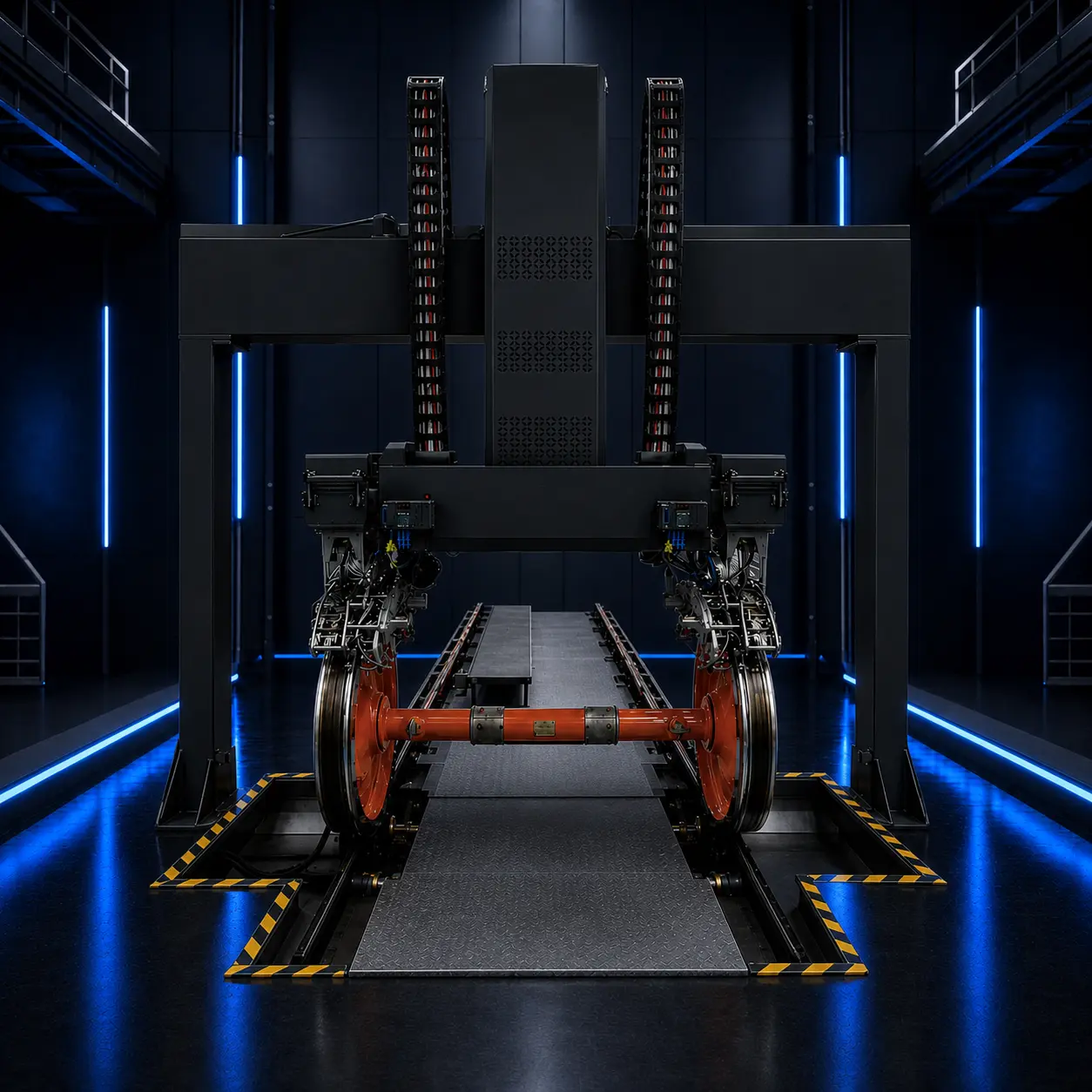

Learn MoreFor Axle & Wheel
Gantry system for full wheelset inspection.
Learn MoreFor Steel Pipe
In-line and gantry systems for pipe mill production lines.
Learn MoreFor Gas Cylinder
Long-bed scanning systems and compact benches for cylinder wall inspection.

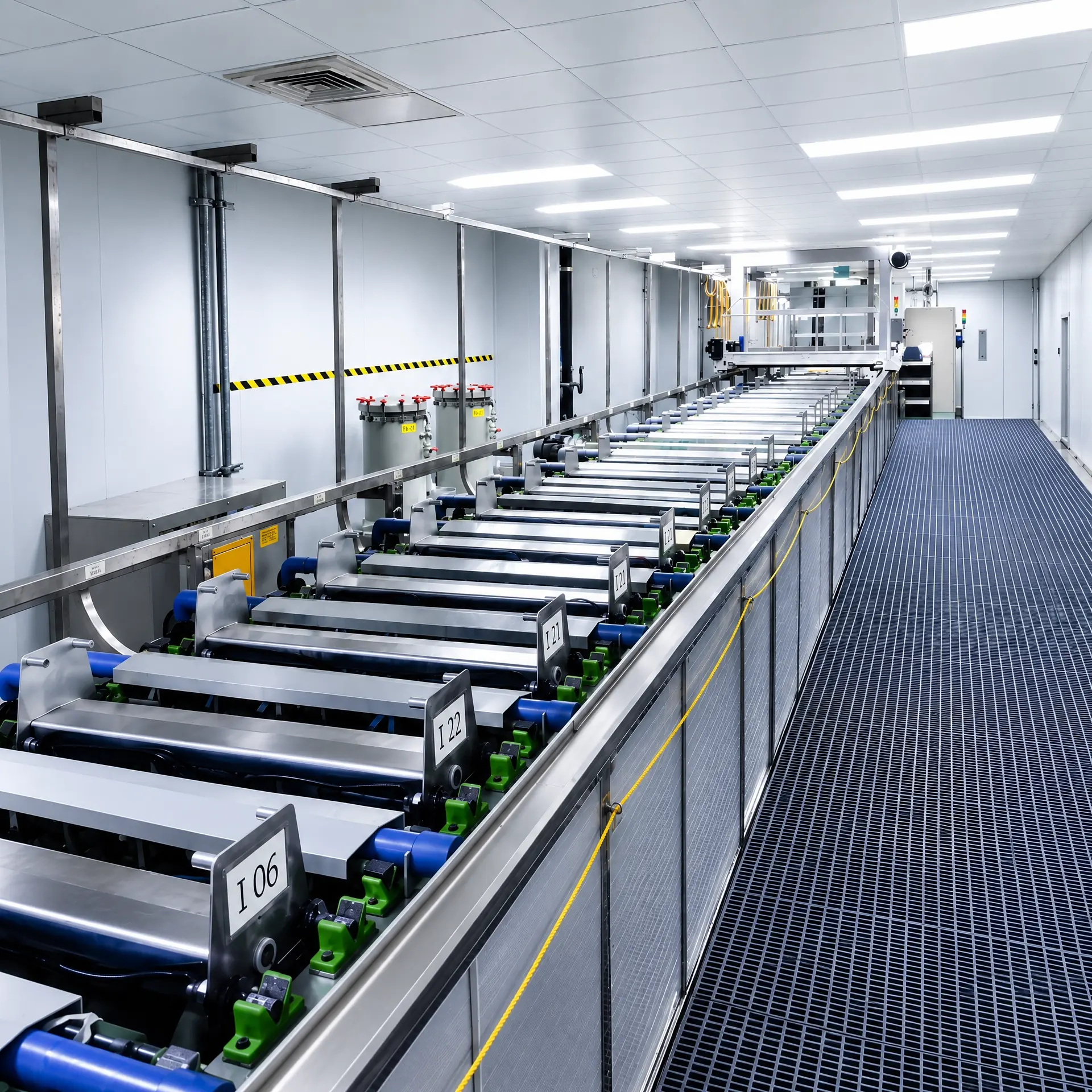

Learn MoreClean Solution
Chemical Cleaning & Surface Treatment
PROMAG designs and builds chemical cleaning and surface treatment lines, as standalone equipment or complete turnkey plants. For NDT users, these lines prepare part surfaces for inspection and remove residual penetrant or magnetic media afterward.
Process Lines
Selection Guide
Which System Fits Your Part?
| System | Choose when | Finds / Does | Typical parts | Standards |
|---|---|---|---|---|
| MPIMagnetic Particle InspectionMPI Equipment → | The part is ferromagnetic steel or iron | Surface & near-surface cracks | Shafts, gears, crankshafts, CV joints, forgings, welds | ASTM E709 · ASTM E1444 · EN ISO 9934-3 |
| FPIFluorescent Penetrant InspectionFPI Equipment → | The part is non-porous and non-magnetic, or the spec calls for penetrant | Surface-breaking cracks | Turbine blades, engine cases, castings | ASTM E1417 · ASTM E165 · AMS 2644 · NADCAP |
| PAUTUltrasonic Phased ArrayPAUT System → | Internal flaws must be ruled out | Internal cracks, inclusions, voids | Steel pipes, bars, gas cylinders, railway components | — |
| CleanClean SolutionClean Solution → | You need surface preparation, post-cleaning or surface treatment | Cleaning, etching, anodizing, plating | Pipes, bars, dies, forgings, aerospace parts | Built to support Nadcap audits |
