Portable Handheld UV-A LED Lamp | VICTORY I

Promag

---------
---------

VICTORY I

Handheld UV-A Lamps

The PROMAG VICTORY I goes where the inspection is. At just 600 g, it stays comfortable in the hand through a full shift — on the shop floor, up a ladder, or out in the field.

Four high-performance UV-A LEDs make indications stand out clearly, with a high/low switch right on the handle. Run it on battery or plug it into mains power, whichever the job calls for.

Built to last 20,000 hours, VICTORY I arrives ready to work: goggles, battery, adapter and case included. Add a shoulder strap, phone holder or spare Bosch battery when the work asks for more.

View Model Lineup Technical Data

RRES 90061

AITM 6-1001

ASTM E3022

EN ISO 3059

AMS 2647

PROMAG VICTORY I handheld UV-A lamp — front view

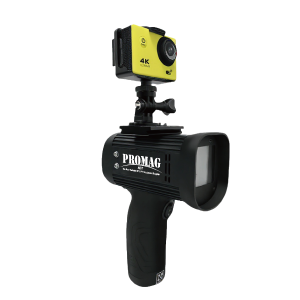

PROMAG VICTORY I handheld UV-A lamp — field application

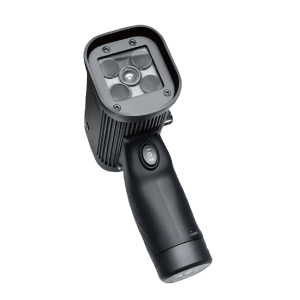

PROMAG VICTORY I handheld UV-A lamp — detail view

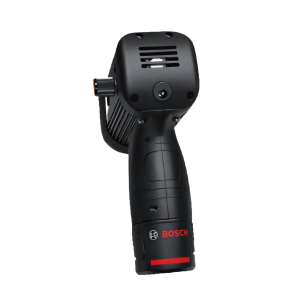

PROMAG VICTORY I handheld UV-A lamp — field application angle

600 g Weight

Compact and durable, easy to carry

4 UV-A LEDs

High-intensity UV-A illumination

2 Key Designs

Durable and robust, stable inspection

20,000 Lifespan

Long-lasting and stable performance

2 Power Modes

Supports both battery and AC power sources

VICTORY I Series

Model Lineup

VIC1-AS1

Standard Intensity

Calibrated for standard-duty fluorescent penetrant and magnetic particle inspection, delivering consistent sub-5,000 μW/cm² output over a Ø20 cm spot for everyday field and bench checks. Carries the broadest compliance coverage in the series.

Intensity< 5,000 μW/cm²

ComplianceRRES 90061, AITM 6-1001, ASTM E3022

CoverageØ20 ± 1 cm

OutputUV-A Only

VIC1-AS

Standard Intensity

Same standard-duty UV-A performance as the AS1, with switchable white light built in for surface preparation, part positioning and post-inspection review without carrying a second lamp.

Intensity< 5,000 μW/cm²

ComplianceRRES 90061, AITM 6-1001, ASTM E3022

CoverageØ20 ± 1 cm

OutputUV-A + White Light

VIC1-SD

High Intensity

Built for high-sensitivity inspection work, delivering ≥ 8,000 μW/cm² over a concentrated Ø17 cm spot for fast, high-contrast flaw detection on critical welds and structural components.

Intensity≥ 8,000 μW/cm²

ComplianceASTM E3022

CoverageØ17 ± 1 cm

OutputUV-A + White Light

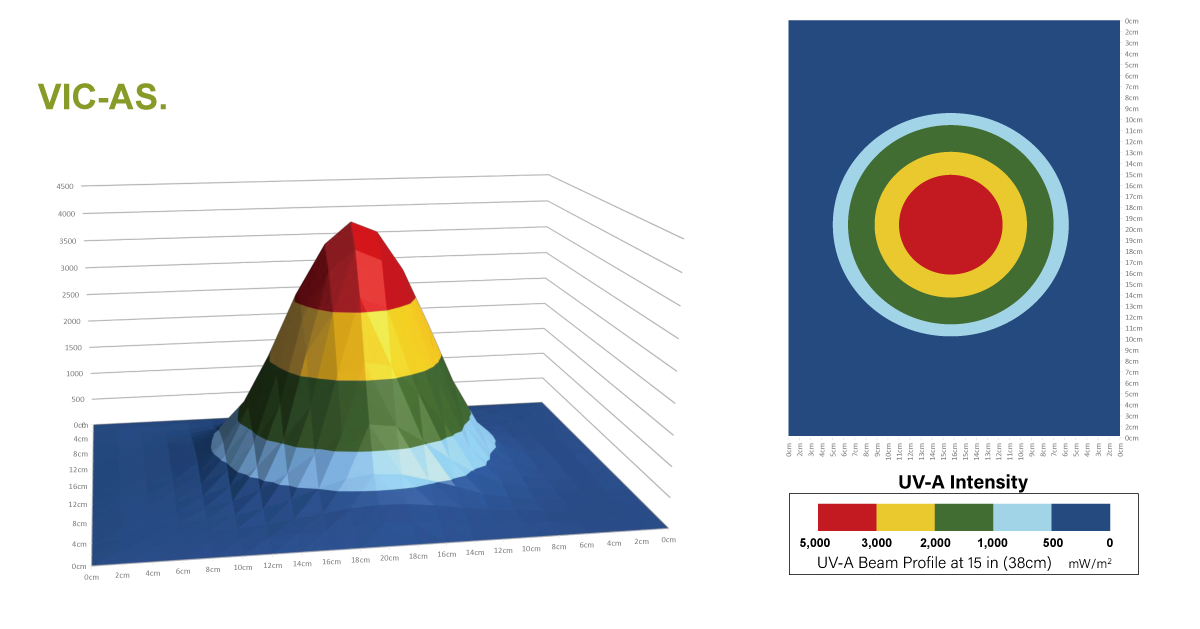

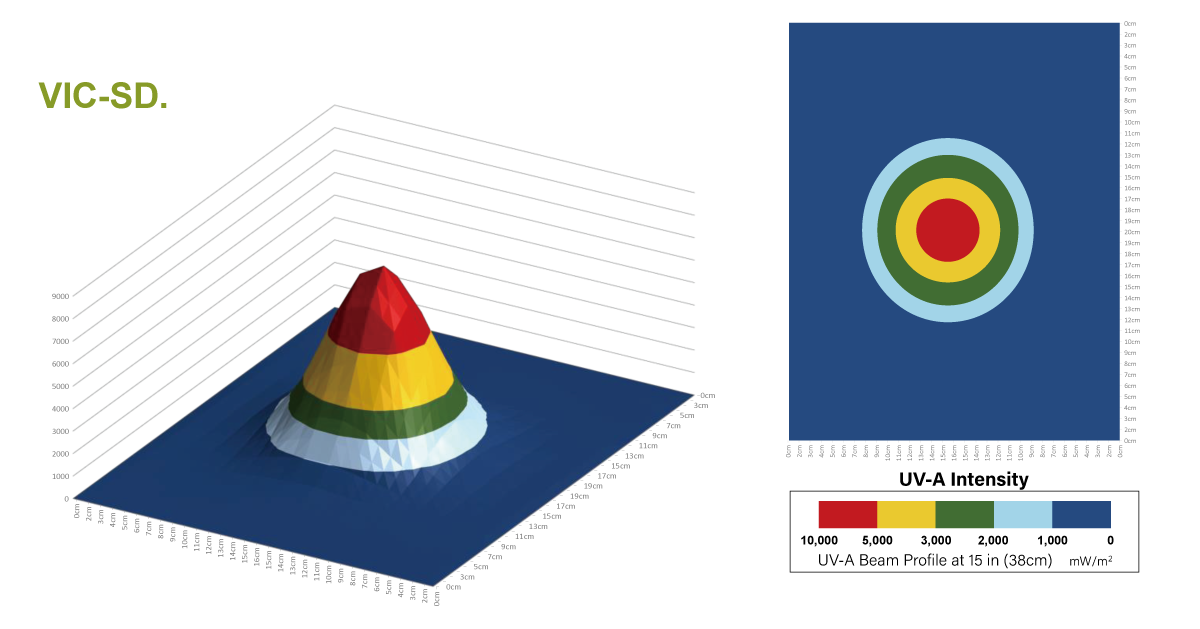

P/N	Type	UV-A Intensity at 15 in (38 cm) (μW/cm²)	UV-A Coverage Area at 15 in (38 cm) at minimum 1,000 μW/cm²	RRES 90061	AITM 6-1001
P7110	VIC1-AS1 (UV-A Only)	< 5,000	Ø 7.87 ± 0.4 in (20 ± 1 cm)
P7111	VIC1-AS (UV-A + WH)	< 5,000	Ø 7.87 ± 0.4 in (20 ± 1 cm)
P7113	VIC1-SD (UV-A + WH)	≥ 8,000	Ø 6.7 ± 0.4 in (17 ± 1 cm)	—	—

Product Specifications

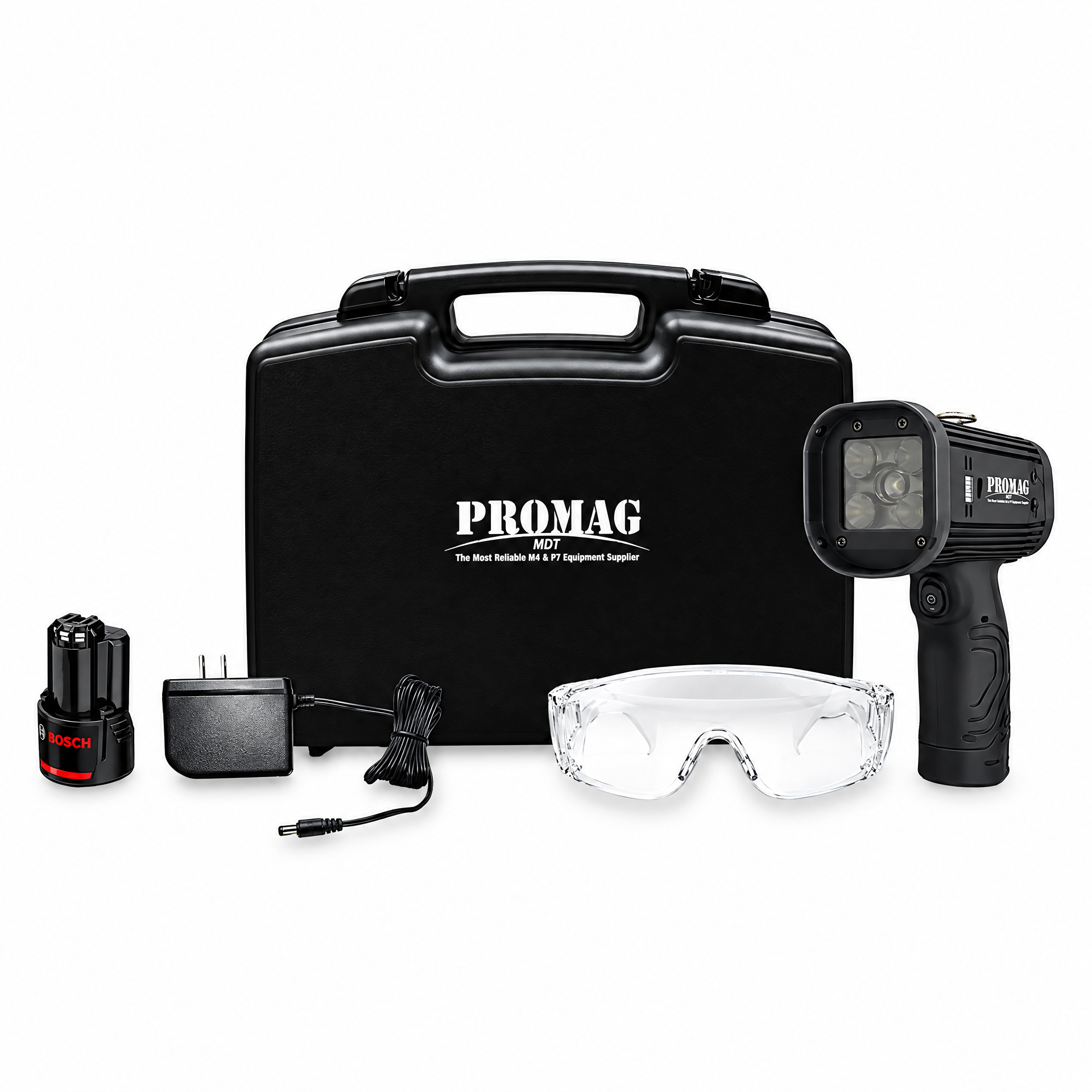

Standard Set

1

2

3

4

5

1

UV-A LED Lamp × 1

2

UV-A Goggle × 1

3

Power Supply Adapter × 1

4

12V Bosch Battery × 1

5

Carry Case × 1

Optional

1

Phone Holder

2

Camera Holder

3

Shoulder Strap

4

Power Cord: 5 m

5

6.0 Ah Bosch Battery — Running time: 3.5 hours / Charging time: 6 hours

6

Battery Charger Stand

All product outlets follow US standards. Optional plug adapters are available for purchase to meet local requirements.

Technical Data

Function	Data
Power Supply	Mains powered & Battery
Light Source	UV-A LED & White Light LED
Dimensions (L×W×H)	14 × 6.5 × 18 cm (5.5 × 2.56 × 7.09 in)
Weight	600 g (1.3 lb) (with battery pack)
Visible Light in UV-A Mode at 15 in (38 cm)	≤ 2 foot-candles (20 lux)
Visible Light Intensity in Visible Mode (38 cm)	20 foot-candles (200 lux)
Power Requirements	90–240 VAC
Battery Pack	Type: Bosch 12 V, Li-ion rechargeable battery · Running time: 1.5 hours continuous · Charging time: 4 hours
