High Performance Penetrant Inspection
A compact all-in-one FPI system engineered for facilities seeking reliable inspection performance within limited floor space and budget.
ECO FPI benches are upgradable to have the functions of single-point electrical and fluid control on stations, certifiable gages mounted on quick disconnect fittings, and integrations for overhead hoister or rollers to perform all processing to ASTM E1417 and other major requirements in FPI process.
ECO 5 Core Processing Stations

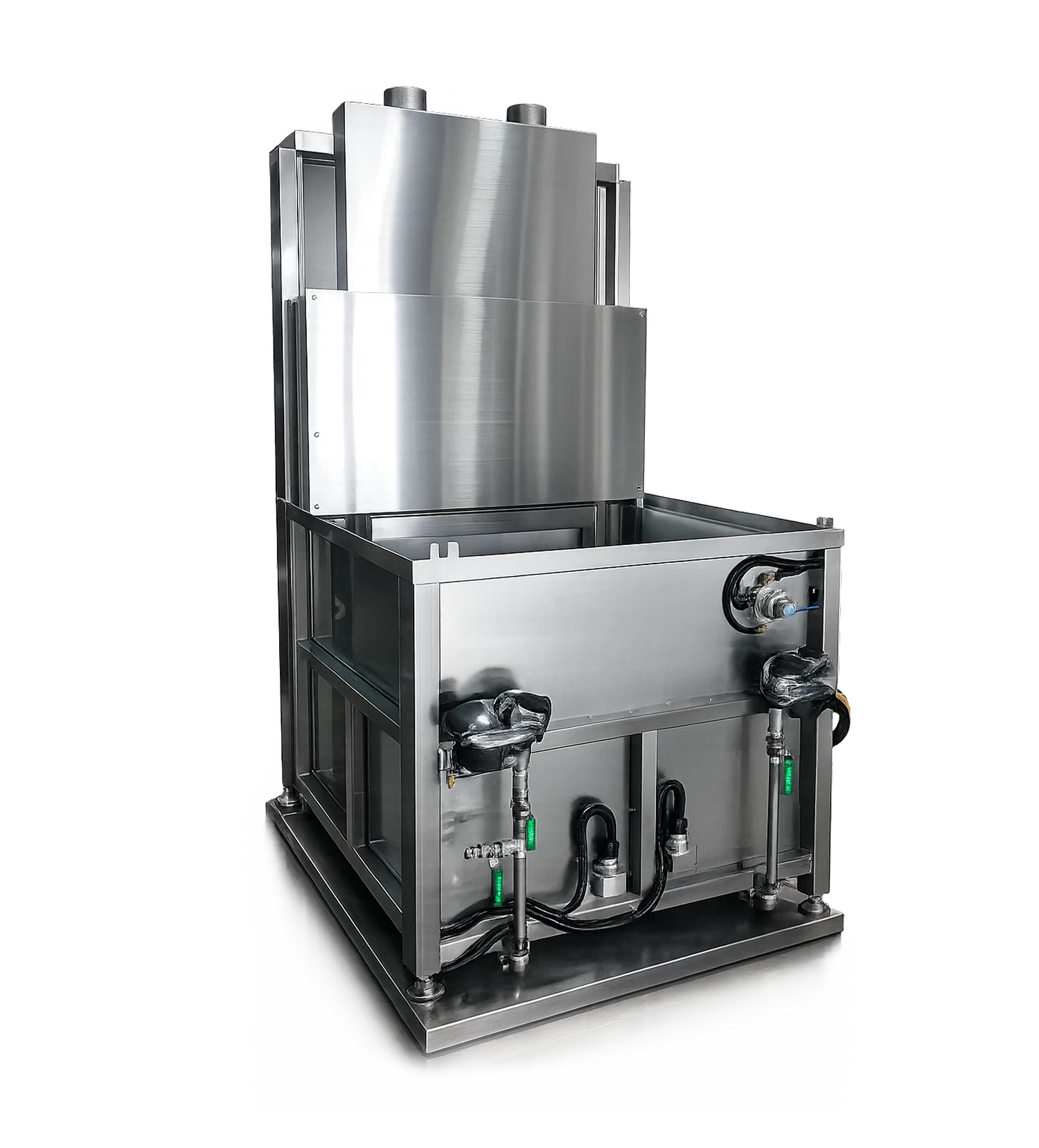

Penetrant Station
Dedicated sprayer system lays an even penetrant film so capillary action reaches every surface-breaking defect.
- Dedicated sprayer system
- Even full-surface coverage

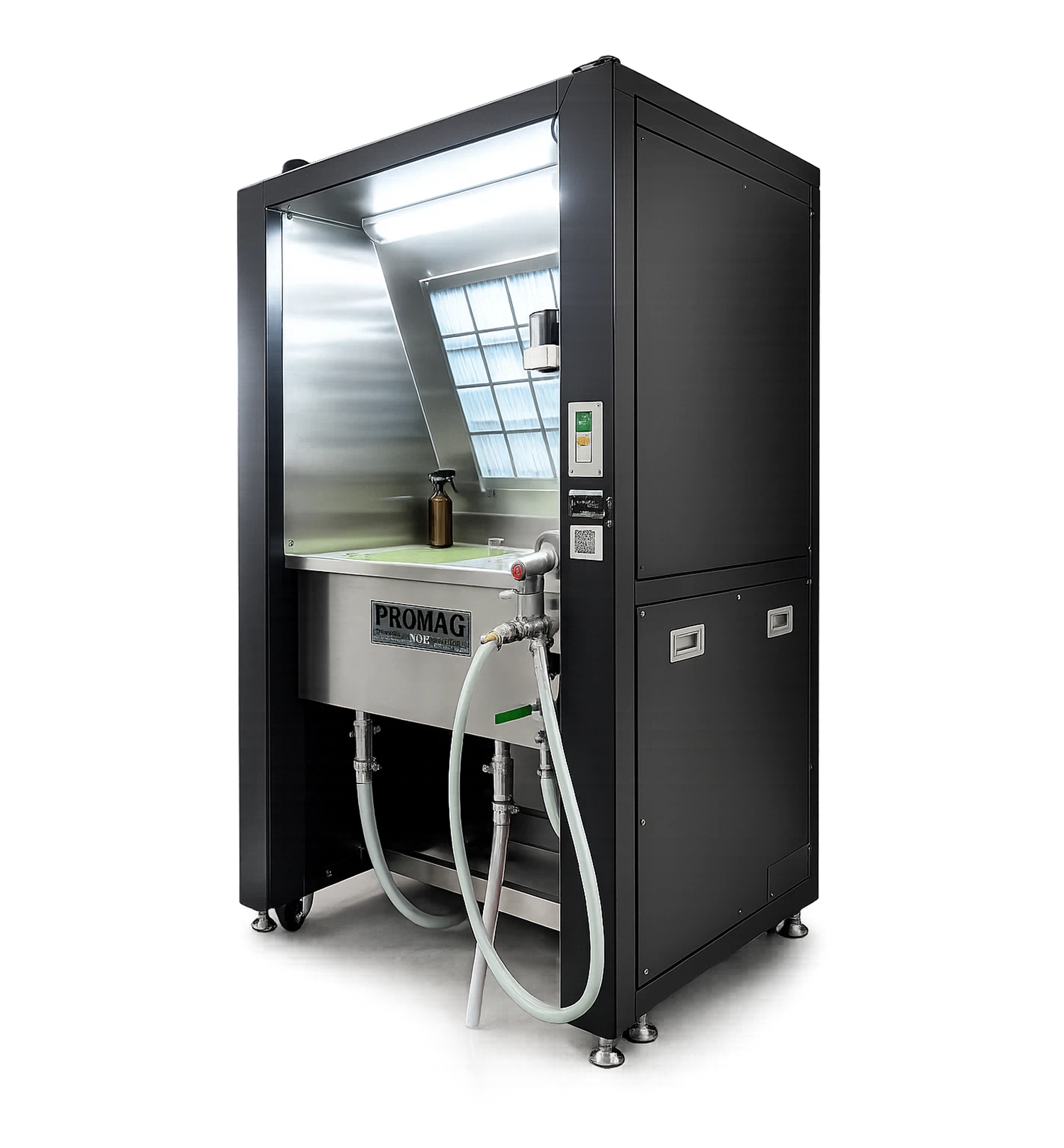

Rinse Station
Efficient water rinse clears excess surface penetrant while the fluid trapped inside defects stays untouched.
- Water rinse system
- Removes surface excess only
Dryer Station
Integrated electrical heating with forced air circulation dries the part fast and evenly before developing.
- Electrical heating system
- Forced air circulation

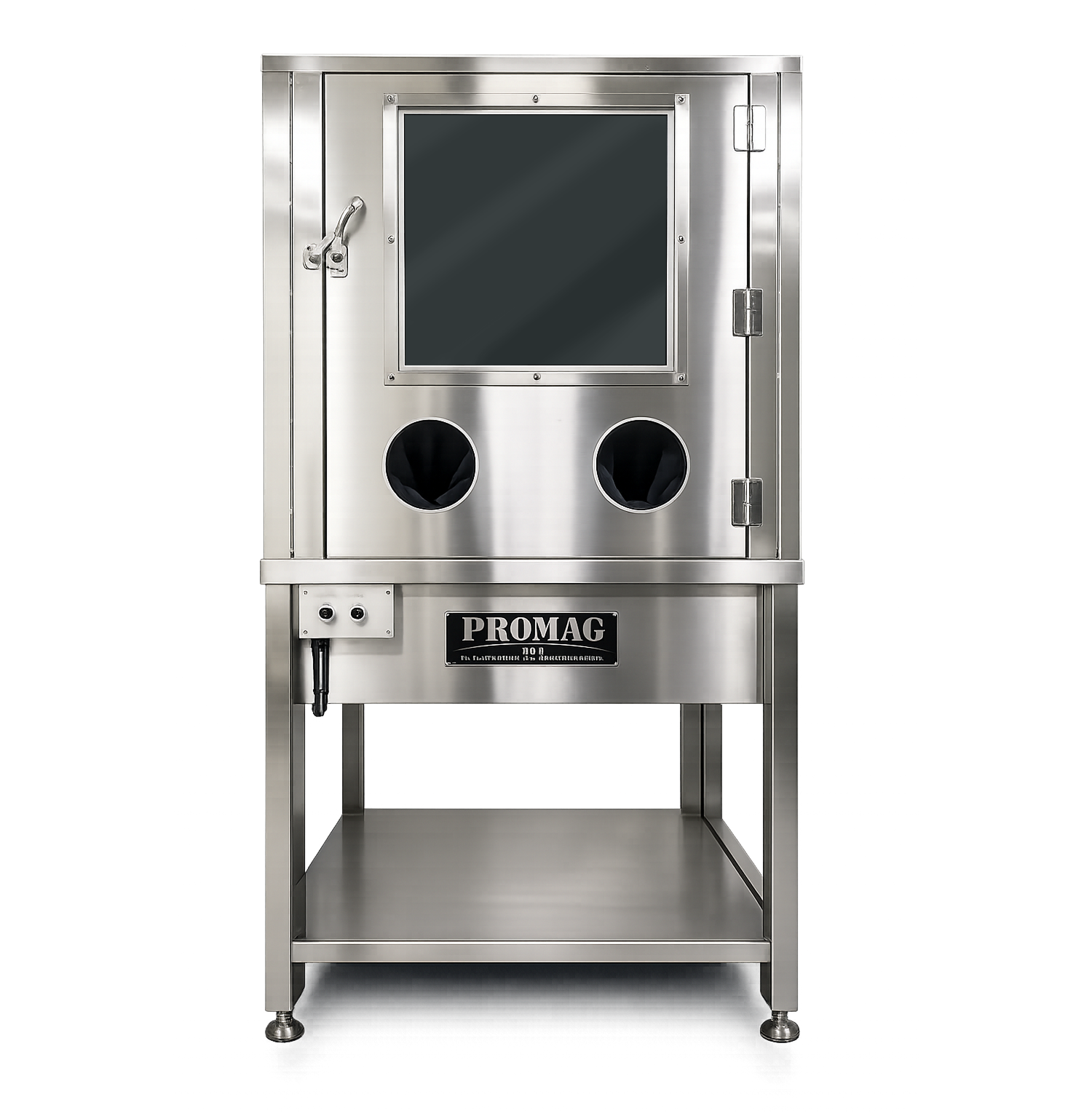

Developer Station
Powder spray draws trapped penetrant back to the surface, turning hidden defects into visible indications.
- Powder spray can
- Dust collector & filter unit
Inspection Station
Stand-alone booth gives controlled viewing conditions so every indication is read and recorded reliably.
- Curtains & exhaust fan
- Visible light booth

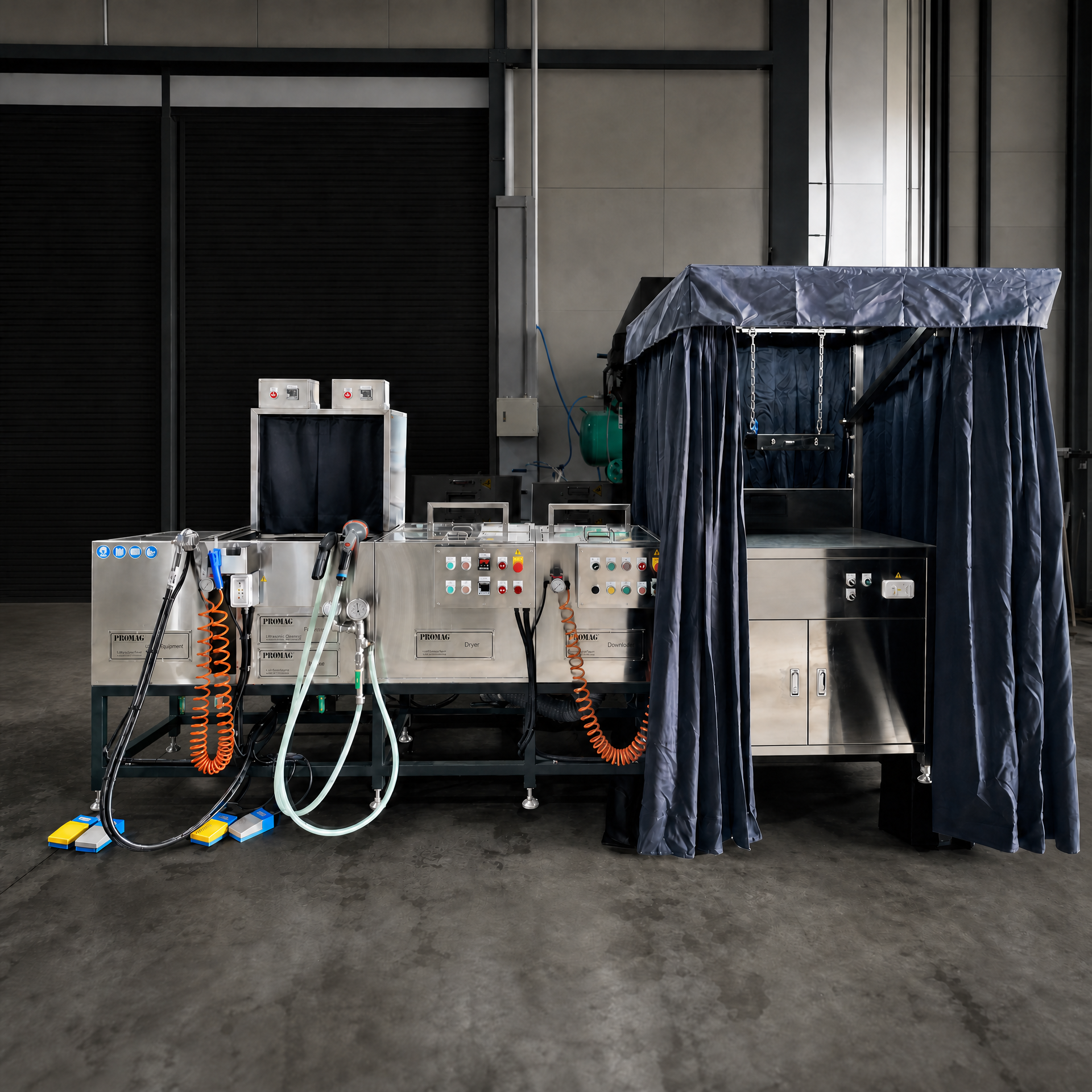

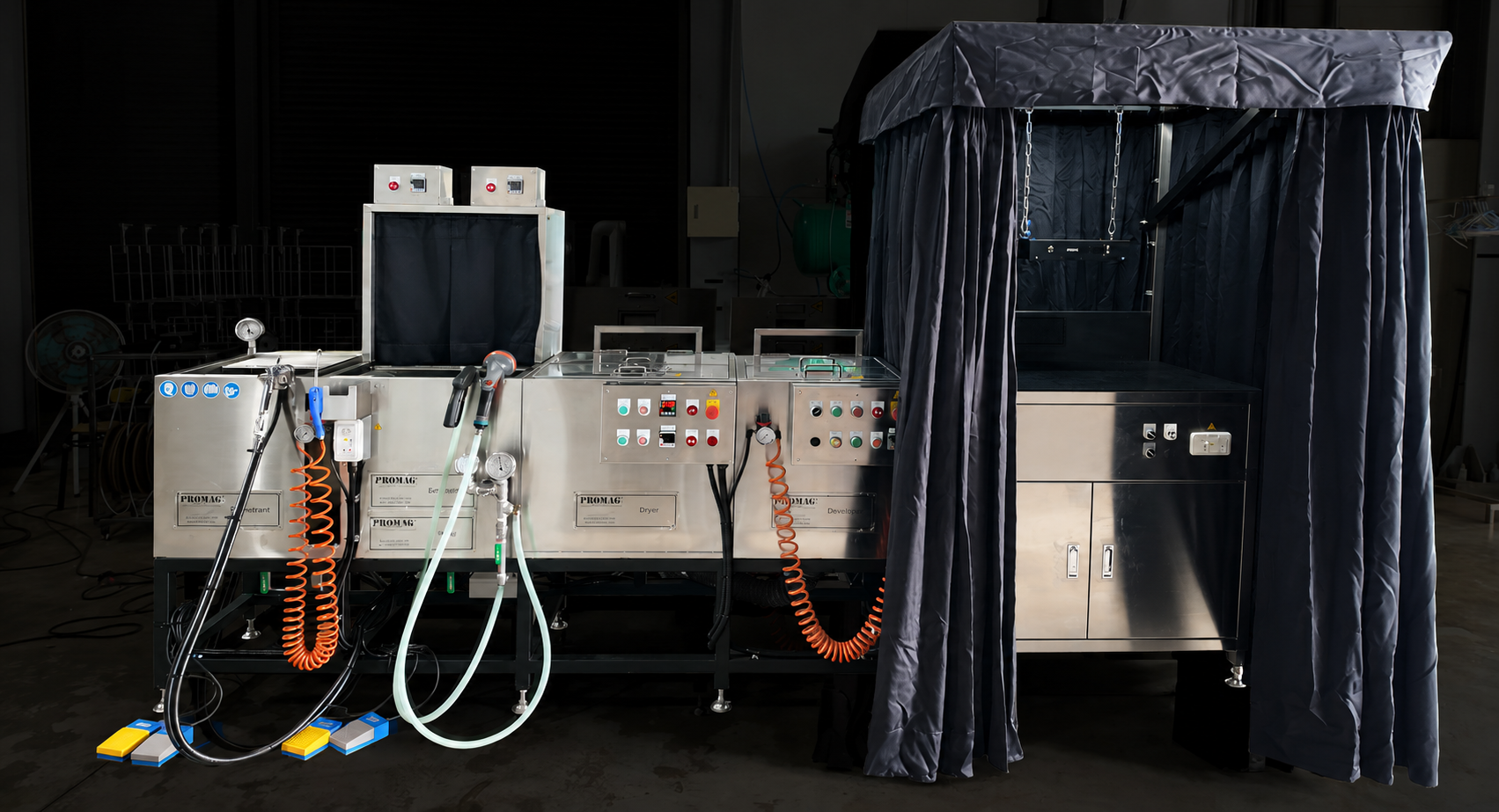

Compact FPI Bench
Built To Do More

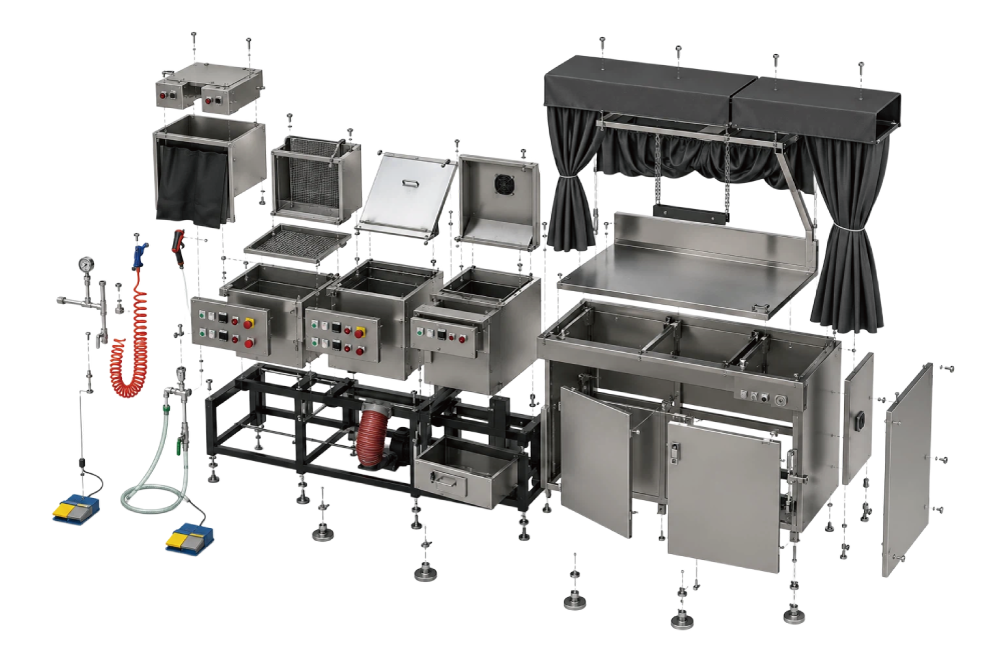

All-In-One Modular Design
Designed to optimize workflow efficiency, the ECO / Manual integrates the complete FPI process — including penetrant application, rinsing, drying, development, and darkroom inspection — into a highly compact and modular system architecture. Built for flexibility, reliability, and operational simplicity, the system delivers consistent inspection performance while minimizing installation space and operational complexity.
Preferred For Sampling & Training
With intuitive operation, practical system configuration, and outstanding cost efficiency, the ECO / Manual platform is an ideal solution for training facilities, certification programs, technical institutions, and workforce development centers.
Standard & Optional Configurations
-
Bench Structure
Single station type or multi-tanks configuration. All stations are constructed and welded using robust stainless 304 sheet metal for maximum durability.
-
Penetrant Station
Equipped with an integrated sprayer system.
-
Rinse Station
Equipped with a basic spray gun.
-
Dryer Station
Comes with electrical heating system and air circulation.
-
Developer Station
Includes powder spray can, dust collector, plus air filter.
-
Inspection Station / Stand Alone
Stand-alone booth equipped with exhaust fan, blackout curtains, and visible light. Entry at front is fully curtained.
-
Hand-held UV Light
Hand-held UV inspection LED light.
-
Stationary UV Light
Stationary overhead UV light fixture.
-
Water Spray Gun
Ergonomic high-precision water spray gun.
-
Air Spray Gun
Pneumatic air spray gun for surface drying.
Single Station
Engineered for aerospace FPI lines
Modular Station Architecture
Station-based FPI layout that scales with your line. Configurable for Method A, D, or A+D without rebuilding the tank sequence.
Single-Point Control
Centralized electrical and fluid control from one panel. Certifiable gages mounted on quick-disconnect fittings for fast calibration swaps.
High-Throughput Material Handling
Works with overhead hoists or roller conveyors, keeping floor space clear while sustaining continuous part flow.
Operator Training & Certification
On-site instruction covering operation, troubleshooting, and routine maintenance, with certificates issued to qualified participants.
Purpose-Built Accessories
Temperature and pressure meters, spray guns, filtration units, draining shelves, and foldable lids.
Aerospace Compliance
Engineered to ASTM E1417 and NADCAP requirements.
Certifications & Compliance
Liquid Penetrant Testing
Every station is engineered and validated against its process, timing, and materials requirements.
Aerospace Quality Accreditation
The aerospace industry's benchmark accreditation — a validated, audit-ready inspection process.
Certified Construction
304 stainless build and repeatable station design deliver reliability across every inspection cycle.
Accessories, Consumables & More
Beyond the ECO / Manual, explore PROMAG's full range of FPI accessories and consumables — including UV-A lamps, penetrant materials, and developers — engineered to work seamlessly with every inspection system we build.
View All FPI ProductsGET YOUR LIMITED-TIME OFFER
